Door hinge TRIO 15 VD SH 1 M8 PH

Door hinge TRIO 15 VD SH 1 M8 PH
Door hinge TRIO 15 VD SH 1 M8 PH
Door hinge TRIO 15 VD SH 1 M8 PH
Door hinge TRIO 15 VD SH 1 M8 PH

cat. no.: 6954

Load: 40.00
Type of hinge: Upper part
Door: Interior, Object
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood, Metal
According to door execution: Rebate
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping upper part: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 35 mm
Czech product: Yes

Use

Upper part - complete hinge (with lower part TRIO 15) is adjustable in three directions. There is a possibility to use ABS and metal caps on hinges.

6954

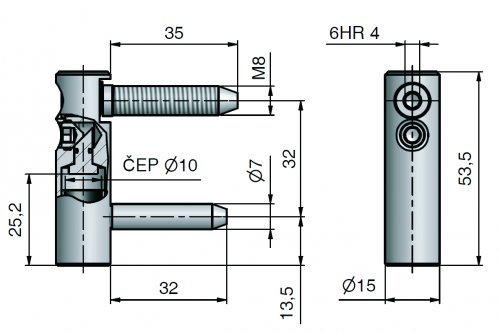

Drawing

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 69540510 name: Yellow zinc package size: 100 pcs without VAT / MJ*: €3.92 incl. VAT / MJ*: €4.74
code: 69540530 name: Blue zinc package size: 100 pcs without VAT / MJ*: €3.92 incl. VAT / MJ*: €4.74
code: 69540700 name: Nickel shiny package size: 100 pcs without VAT / MJ*: €4.63 incl. VAT / MJ*: €5.60
code: 69540D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: €4.96 incl. VAT / MJ*: €6.00

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 69540510 name: Yellow zinc package size: 100 pcs without VAT / MJ*: €3.92 incl. VAT / MJ*: €4.74
code: 69540530 name: Blue zinc package size: 100 pcs without VAT / MJ*: €3.92 incl. VAT / MJ*: €4.74
code: 69540700 name: Nickel shiny package size: 100 pcs without VAT / MJ*: €4.63 incl. VAT / MJ*: €5.60
code: 69540D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: €4.96 incl. VAT / MJ*: €6.00

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
