• Catalog sheet

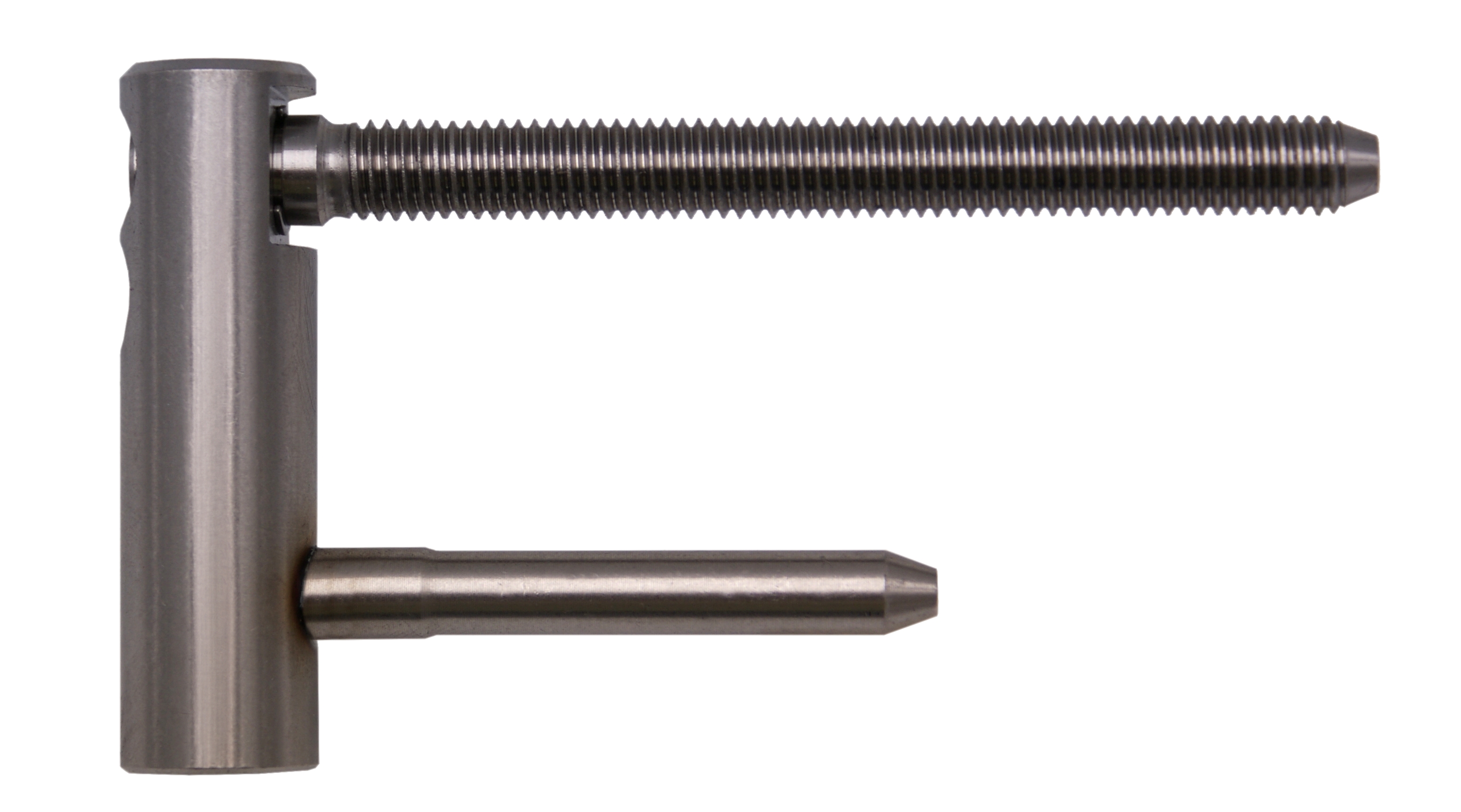

    Door hinge TRIO 15 (OZ) PH M8x80-32 VD stainless steel brushed

    Catalog number 55090000
    Load 40.00
    Type of hinge Upper part
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood, Metal
    According to door execution Rebate
    Ending Without decorative ending
    Main material Stainless steel
    Fire resistance yes (appropriate for fire protection testing)
    Gripping upper part Screw in
    Diameter of bolt rivet(s) M8
    Bolt(s) lenght 80 mm
    Czech product Yes

    Door hinge TRIO 15 (OZ) PH M8x80-32 VD stainless steel brushed

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    		Code: 55090000 name: Brushed package size: 100 pcs without VAT / MJ*: € 8.50 incl. VAT / MJ*: € 10.29

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Upper part for wooden and steel door. Material stainless steel. Complete hinge with SD is adjustable in two directions (see similar goods).

    The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
