• Catalog sheet
    6977

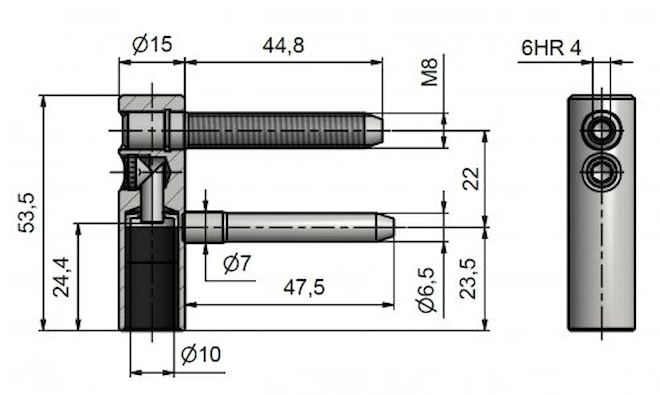

    Drawing

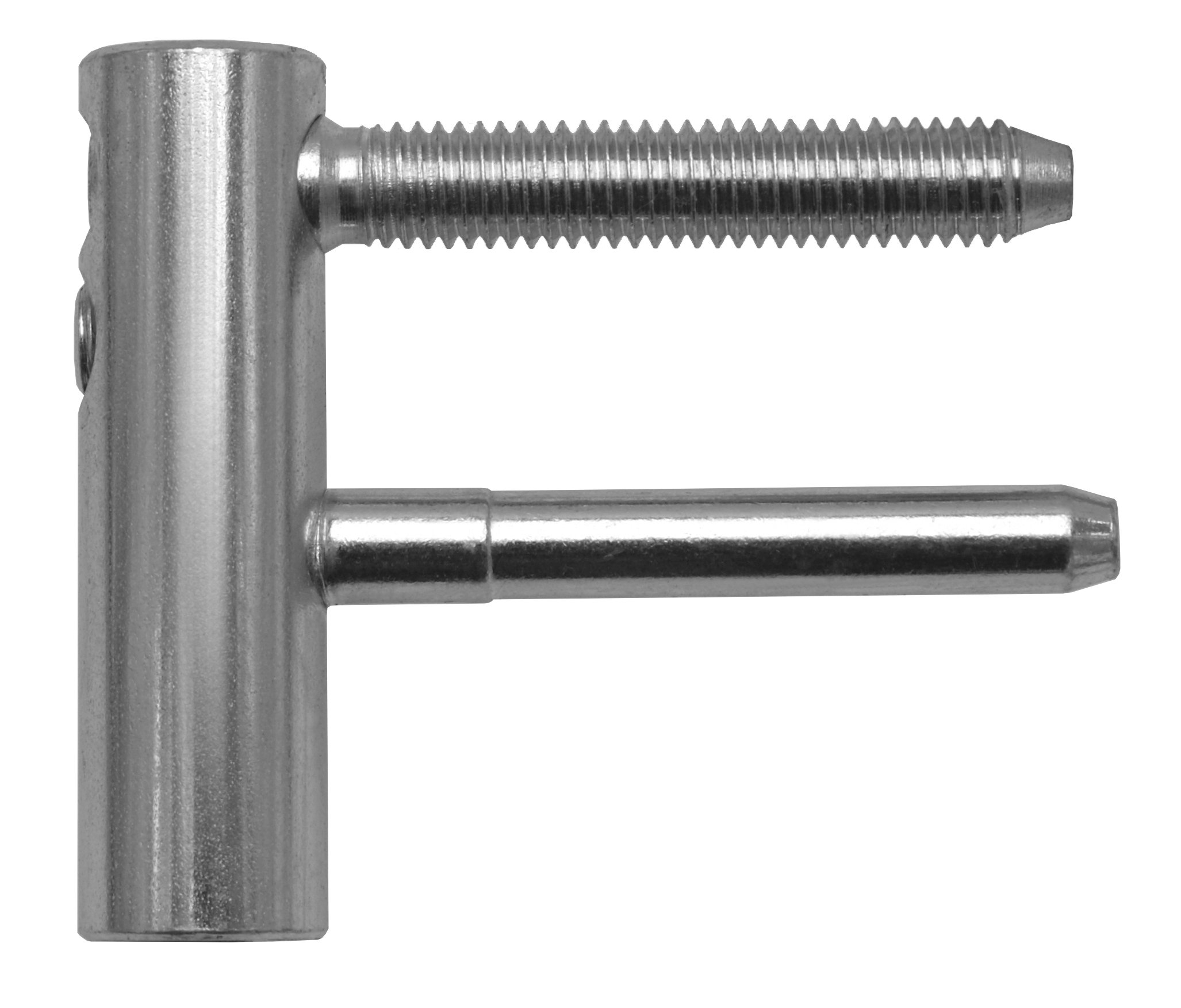

    Door hinge TRIO 15 VD (OZ) PH M8x45

    Catalog number 6977
    Load 40.00
    Type of hinge Upper part
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood , Metal
    According to door execution Rebate
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping upper part Screw in
    Diameter of bolt rivet(s) M8
    Bolt(s) lenght 45 mm
    Czech product Yes

    6977

    Drawing

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 69770530 name: Blue zinc package size: 50 pcs without VAT / MJ*: 4.26 incl. VAT / MJ*: 5.15

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Upper part for wooden and steel door. Complete hinge (with SD TRIO) is adjustable in three directions. There is a possibility to use ABS and mtal caps on hinges.
