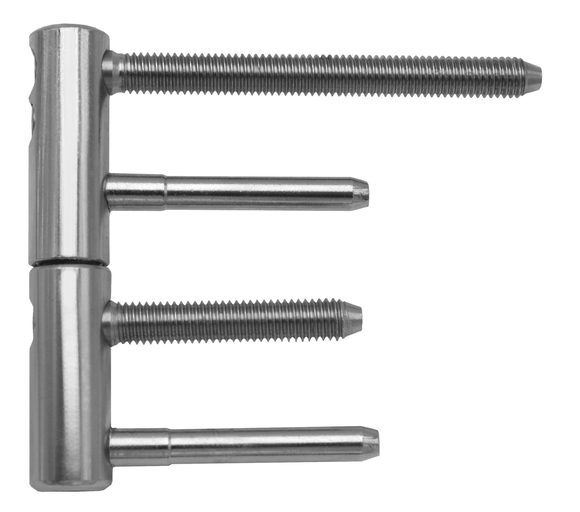

Door hinge TRIO 15 PYRO M8 PH

Name: Door hinge TRIO 15 PYRO M8 PH
SKU: 9631
Price: 8.68 EUR
Availability: InStock

cat. no.: 9631

Load: 40.00

Type of hinge: Complete hinge

Door: Interior

Orientation of door or window: For right and left door (frame)

According to material of door leaf: Wood, Metal

According to door execution: Rebate

According to doorframe: Solid wood, Metal

Ending: Without decorative ending

Main material: Steel

Fire resistance: yes (appropriate for fire protection testing)

Gripping: Screw in

Diameter of bolt rivet(s): M8

Plug high: 19,5 mm

Czech product: Yes

print cat. sheet

Download:

Sampler of surface finishes and symbols used in the catalogue,

Forging and hinge regulation TRIO and EXPERT,

Declaration of performance

Use

Complete hinge TRIO adjustable in three directions.

The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!

There is a possibility to decorate hinge by caps.

9631

Drawing

Available variants

code	type	package size	without VAT / MJ*	incl. VAT / MJ*
code: 96310510	name: Yellow zinc	package size: 25 pcs	without VAT / MJ*: €7.17	incl. VAT / MJ*: €8.68
code: 96310530	name: Blue zinc	package size: 25 pcs	without VAT / MJ*: €7.17	incl. VAT / MJ*: €8.68
code: 96318700	name: Nickel shiny	package size: 25 pcs	without VAT / MJ*: €8.21	incl. VAT / MJ*: €9.94

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
