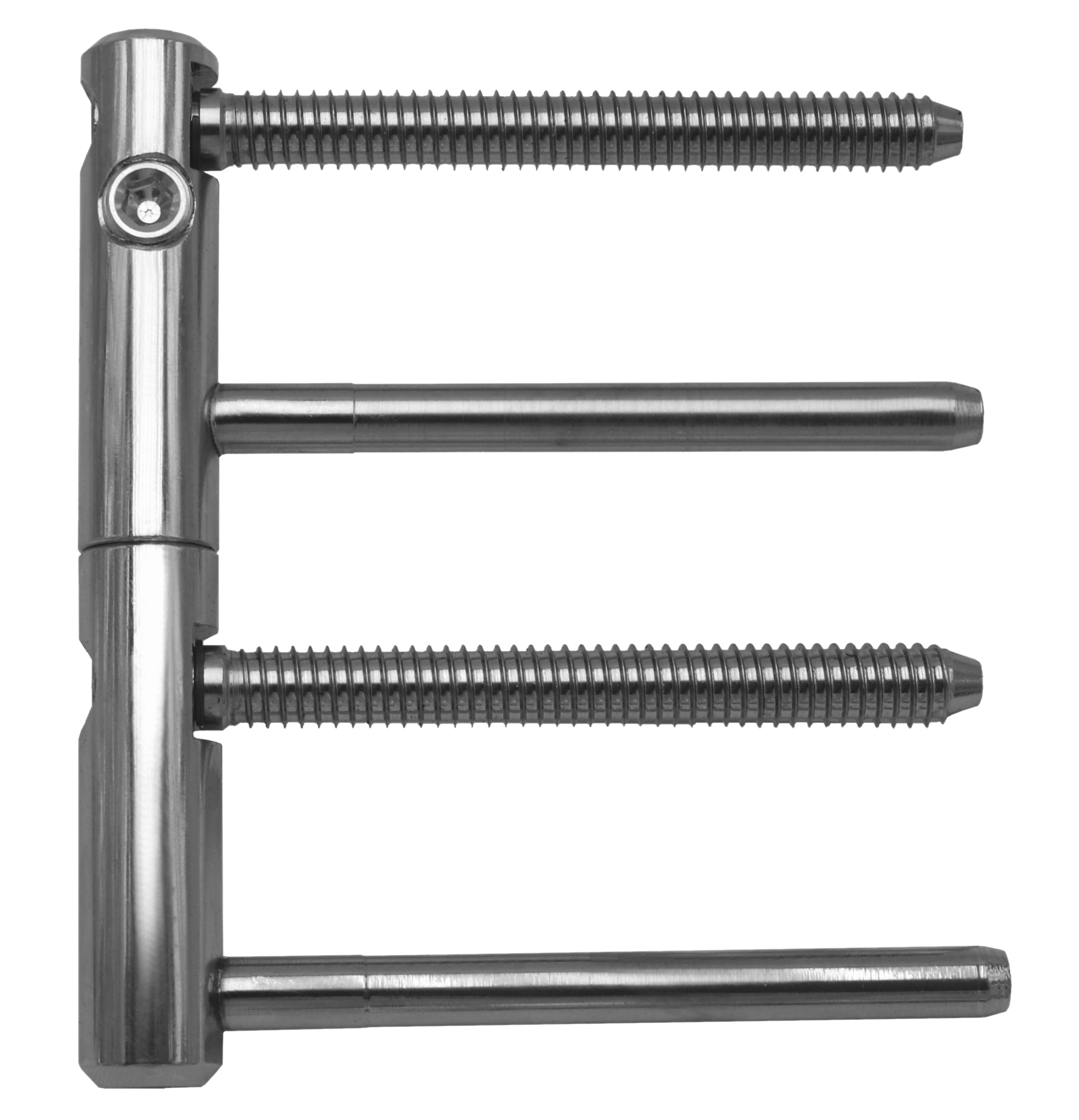

Door hinge TRIO 15 PP DZ PH

cat. no.: 5500

Load: 45.00
Type of hinge: Complete hinge
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping: Screw in
Diameter of bolt rivet(s): Special screw-thread into wood ø 8.7
Bolt(s) lenght: 80,5 mm
Plug high: 25 mm
Czech product: Yes

Use

Hinge adjustable in three parts. Into wooden frame.

The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!

Door hinge TRIO 15 PP DZ PH

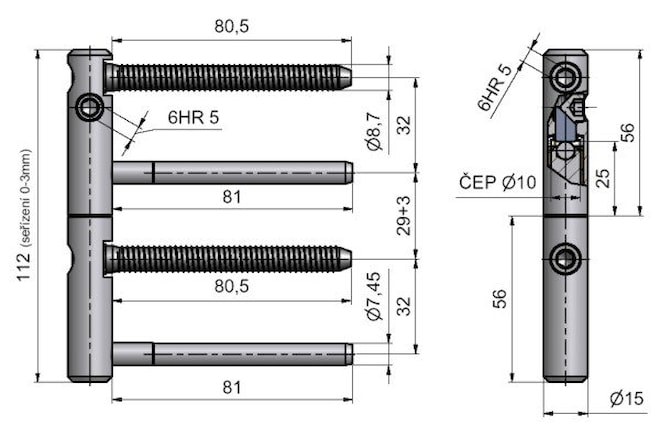

Drawing

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 55000510 name: Yellow zinc package size: 20 pc without VAT / MJ*: €8.52 incl. VAT / MJ*: €10.31
code: 55000530 name: Blue zinc package size: 20 pc without VAT / MJ*: €8.52 incl. VAT / MJ*: €10.31
code: 55000700 name: Nickel shiny package size: 20 pc without VAT / MJ*: €9.62 incl. VAT / MJ*: €11.64

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
