• Catalog sheet

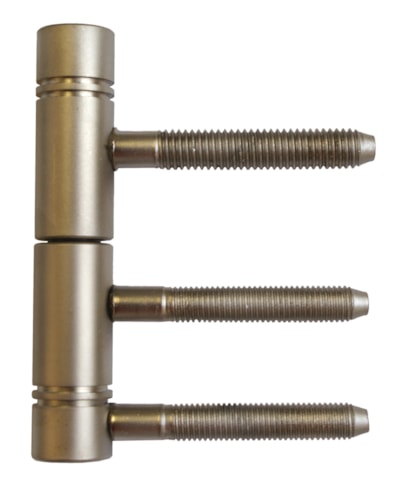

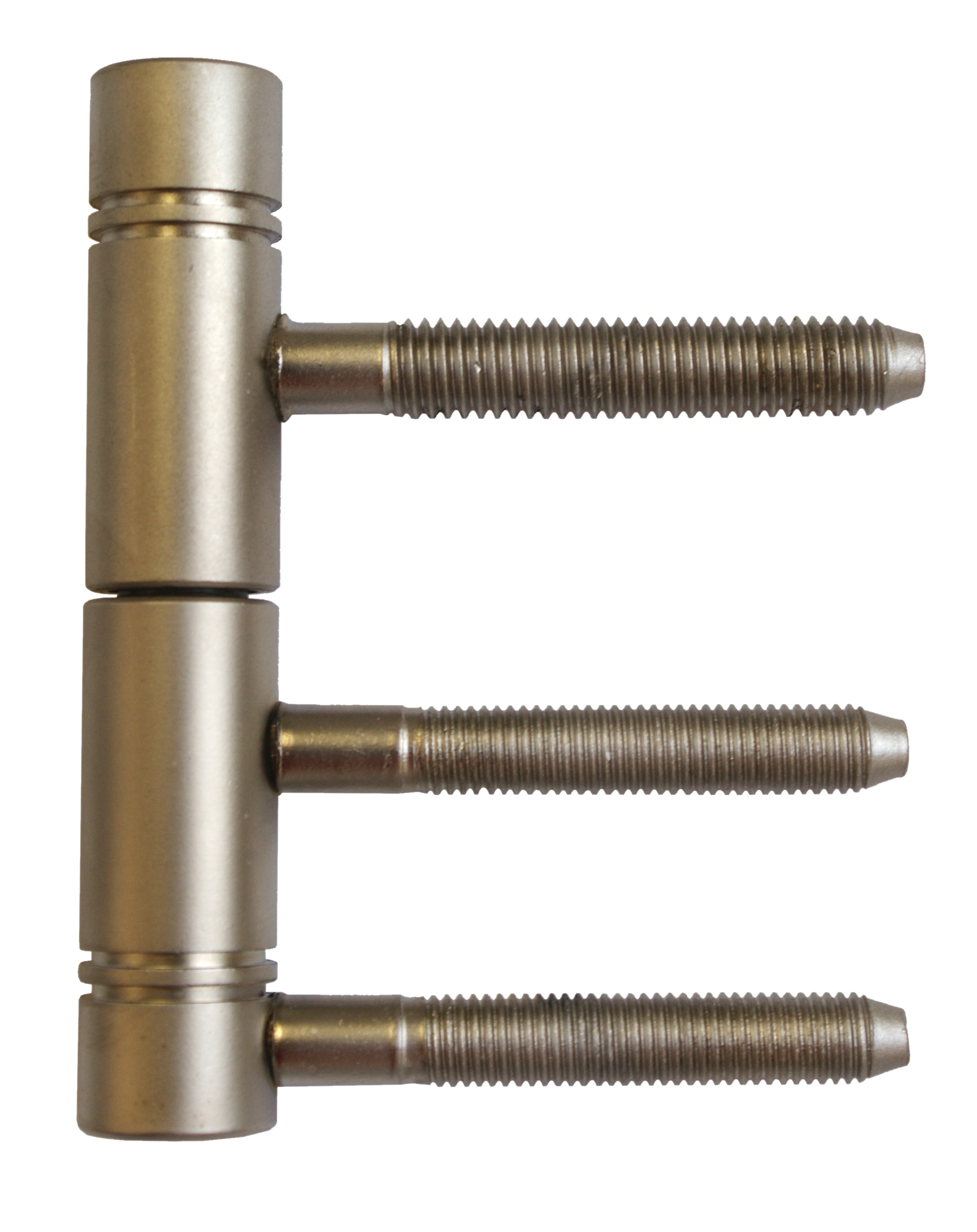

    Door hinge SONET II Nickel satin

    Catalog number 91088D00
    Load 20.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Wooden casing
    Ending Flat ending UR24
    Main material Steel
    Fire resistance no
    Gripping upper part Screw in
    Gripping lowwer part Into fixing element
    Diameter of bolt rivet(s) M7 a M8
    Plug high 25,8 mm
    Czech product Yes

    Door hinge SONET II Nickel satin

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 91088D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: 5.26 incl. VAT / MJ*: 6.36

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Usage: For turning connection of wooden door with wooden casing frame. Plastic case on pin and bearing ball ensure easy turning of hinge. Into hinge liner 22/7 DZ.
