• Catalog sheet

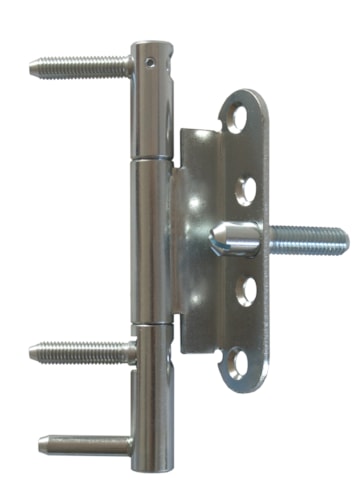

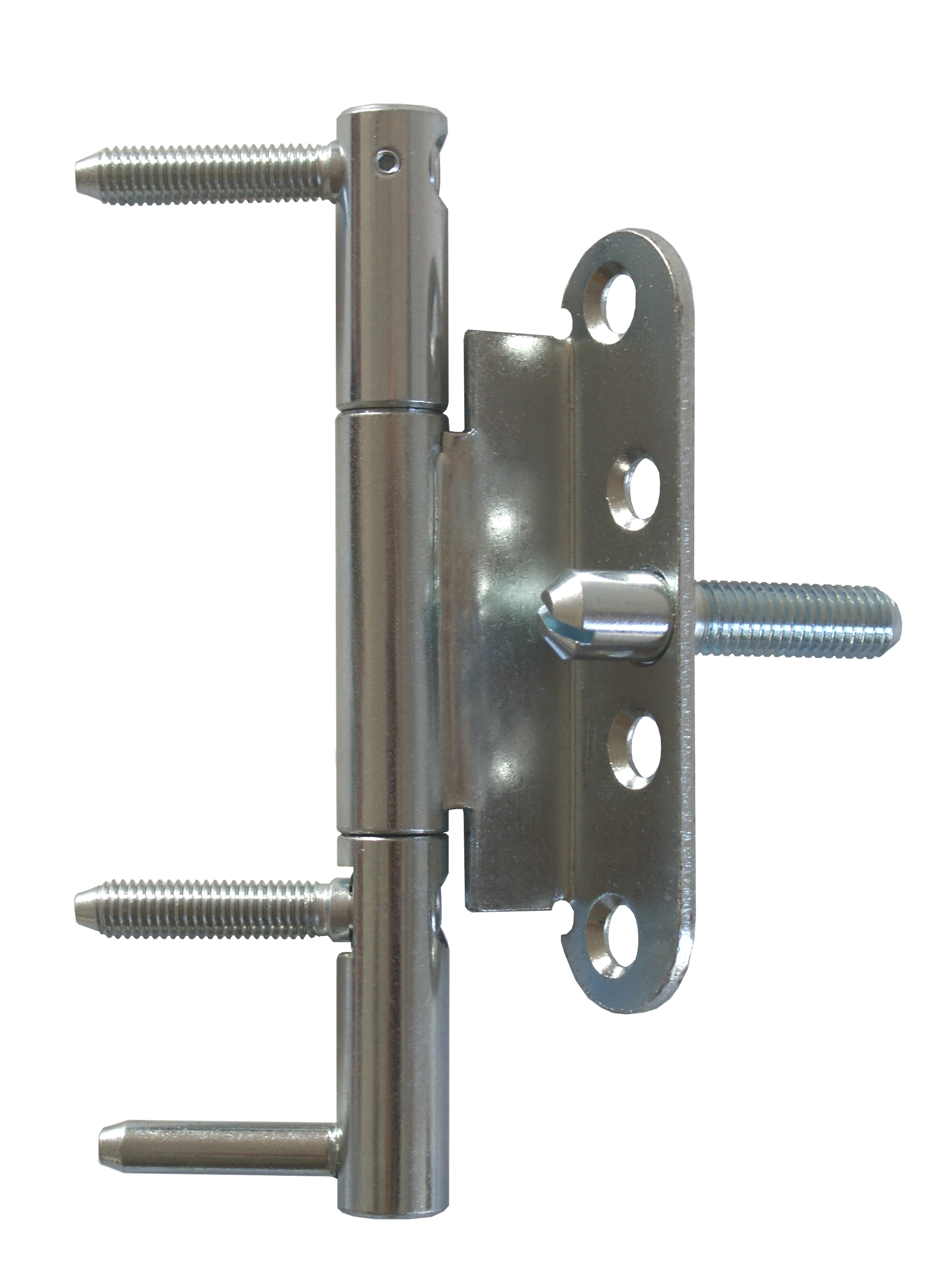

    Door hinge 15x150 of three parts OZ PH BZ (RC3 2D) R Blue zinc

    Catalog number 55400530
    Load 40.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Metal
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping upper part Into fixing element
    Gripping middle part Wood screw
    Gripping lowwer part Into fixing element
    Diameter of bolt rivet(s) M8
    Bolt(s) lenght 35 mm
    We recommend used Screws of ø 5 mm minimum length 50 mm
    Czech product Yes

    Door hinge 15x150 of three parts OZ PH BZ (RC3 2D) R Blue zinc

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 55400530 name: Blue zinc package size: 20 pcs without VAT / MJ*: 11.46 incl. VAT / MJ*: 13.87

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Door hinge of three parts is for rebated doors. The hinge is adjustable in 2 directions. Safety classification 3.
