Door hinge of three parts 15x150 OZ PH BZ (RC3 2D) L
Catalog number | 5541 |
Load | 40.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For left door (frame) |
According to material of door leaf | Wood |
According to door execution | Rebate |
According to doorframe | Metal |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping upper part | Into fixing element |
Gripping middle part | Wood screw |
Gripping lowwer part | Into fixing element |
Diameter of bolt rivet(s) | M8 |
Bolt(s) lenght | 35 mm |
We recommend used | Screws of ø 5 mm minimum length 50 mm |
Czech product | Yes |
Catalog number | 5541 |
Load | 40.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For left door (frame) |
According to material of door leaf | Wood |
According to door execution | Rebate |
According to doorframe | Metal |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping upper part | Into fixing element |
Gripping middle part | Wood screw |
Gripping lowwer part | Into fixing element |
Diameter of bolt rivet(s) | M8 |
Bolt(s) lenght | 35 mm |
We recommend used | Screws of ø 5 mm minimum length 50 mm |
Czech product | Yes |
5541

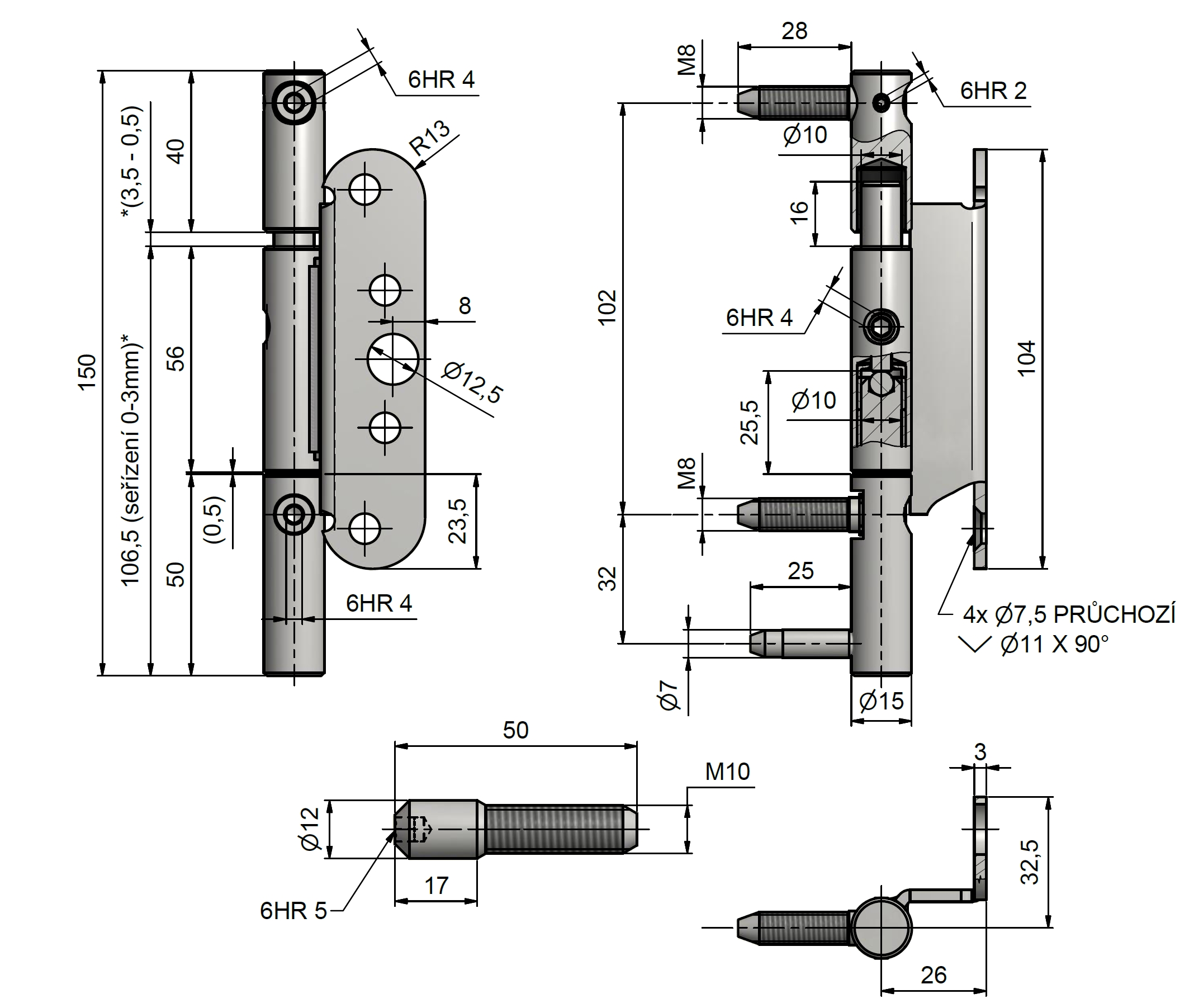

Drawing

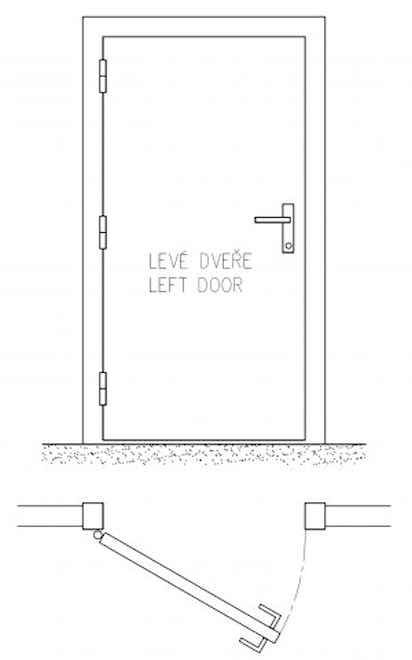

left door
Hinge forging
Hinge forging
Available variants
Door hinge of three parts is for rebated doors. The hinge is adjustable in 2 directions. Safety classification 3.
