Door hinge GEMMA 55 - 20/18 UR24 S3

Action
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3
Door hinge GEMMA 55 - 20/18 UR24 S3

cat. no.: 5575

Load: 56.00
Type of hinge: Complete hinge
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Flat ending UR24
Main material: Alloy ZAMAK and steel
Fire resistance: no
Gripping: Special
Czech product: Yes

Use

Hinge with straight ending - elegant solution for modern exterior doors with rabbet 15 - 18 mm, especially for profile EURO 68 (It is determined for door profile - montage with door template). The hinge is adjustable in three directions, high durability (it was tested for 1 million cycles). Plug is secured against slipping by security screw. Set contains 3 hinges (2x "H", 1x "V"). In case of doors higher than 2000 mm or wider than 1000 mm we recommend adding 4th hinge ("V") which is available separately.

99E3

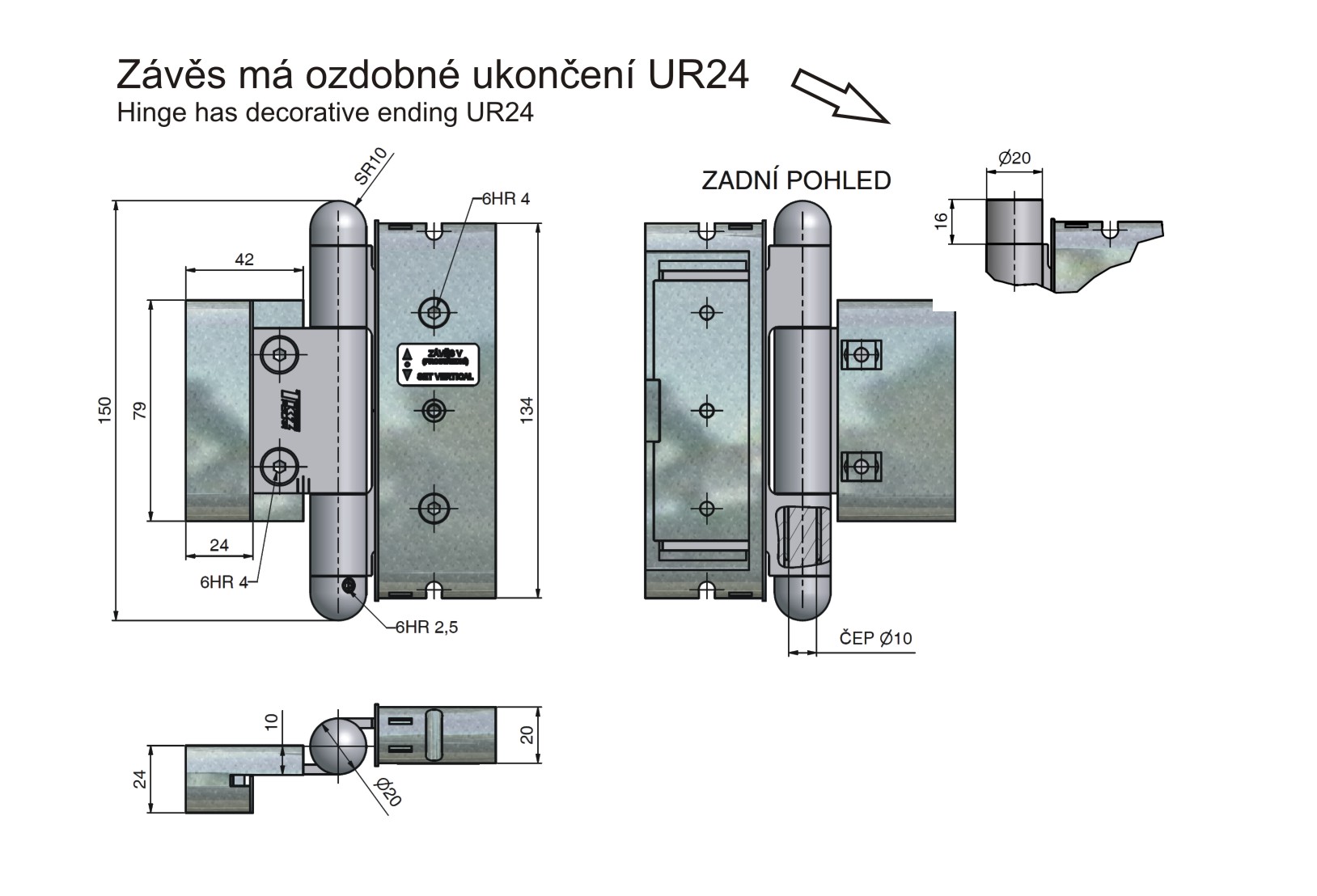

2-99E3_99G3_99G4%203D%20UR24

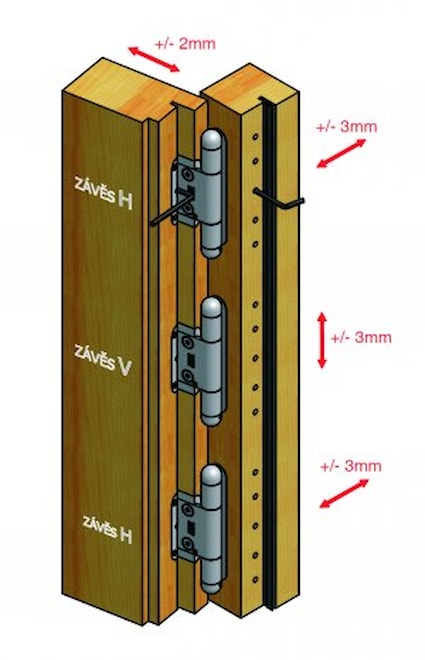

Hinge adjustable

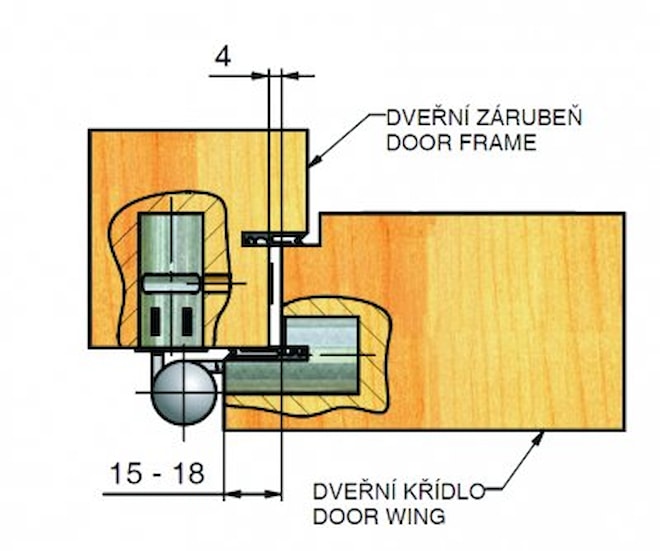

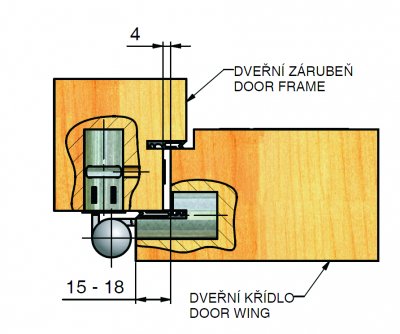

Hinge forging

Forged hinge

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 55756J40 name: Black lacquer RAL9005 Action package size: 1 set without VAT / MJ*: €92.30 incl. VAT / MJ*: €111.68 Action
code: 55758E00 name: Chrome satin Action package size: 1 set without VAT / MJ*: €102.26 incl. VAT / MJ*: €123.73 Action
code: 55758K90 name: Old brass swept Action package size: 1 set without VAT / MJ*: €98.72 incl. VAT / MJ*: €119.45 Action

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 55756J40 name: Black lacquer RAL9005 package size: 1 sets without VAT / MJ*: €92.30 incl. VAT / MJ*: €111.68
code: 55758E00 name: Chrome satin package size: 1 sets without VAT / MJ*: €102.26 incl. VAT / MJ*: €123.73
code: 55758K90 name: Old brass swept package size: 1 sets without VAT / MJ*: €98.72 incl. VAT / MJ*: €119.45

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
