• Catalog sheet
    99G1

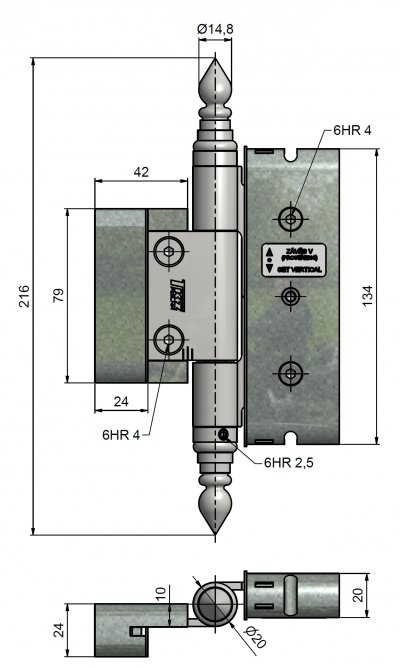

    Drawing

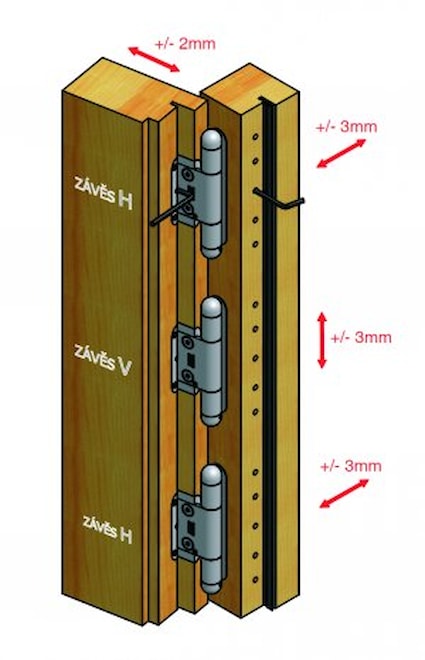

    Regulation

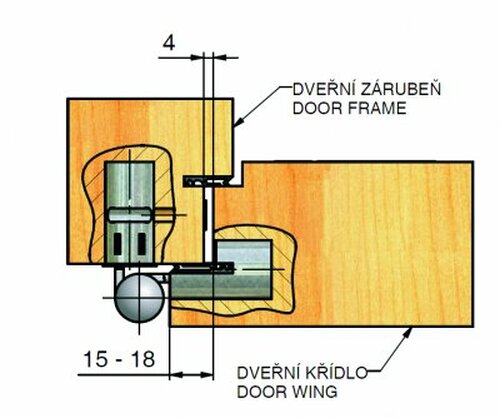

    Hinge forging

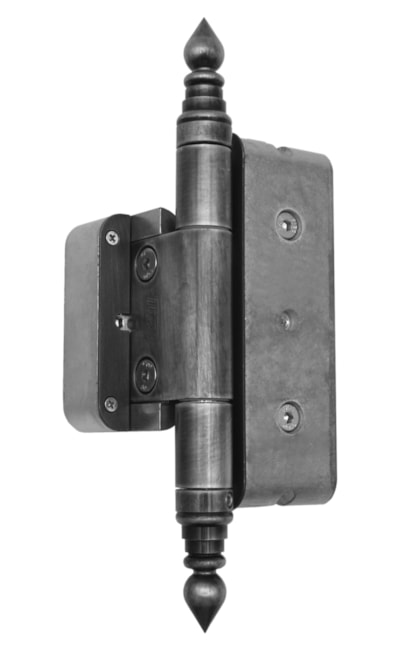

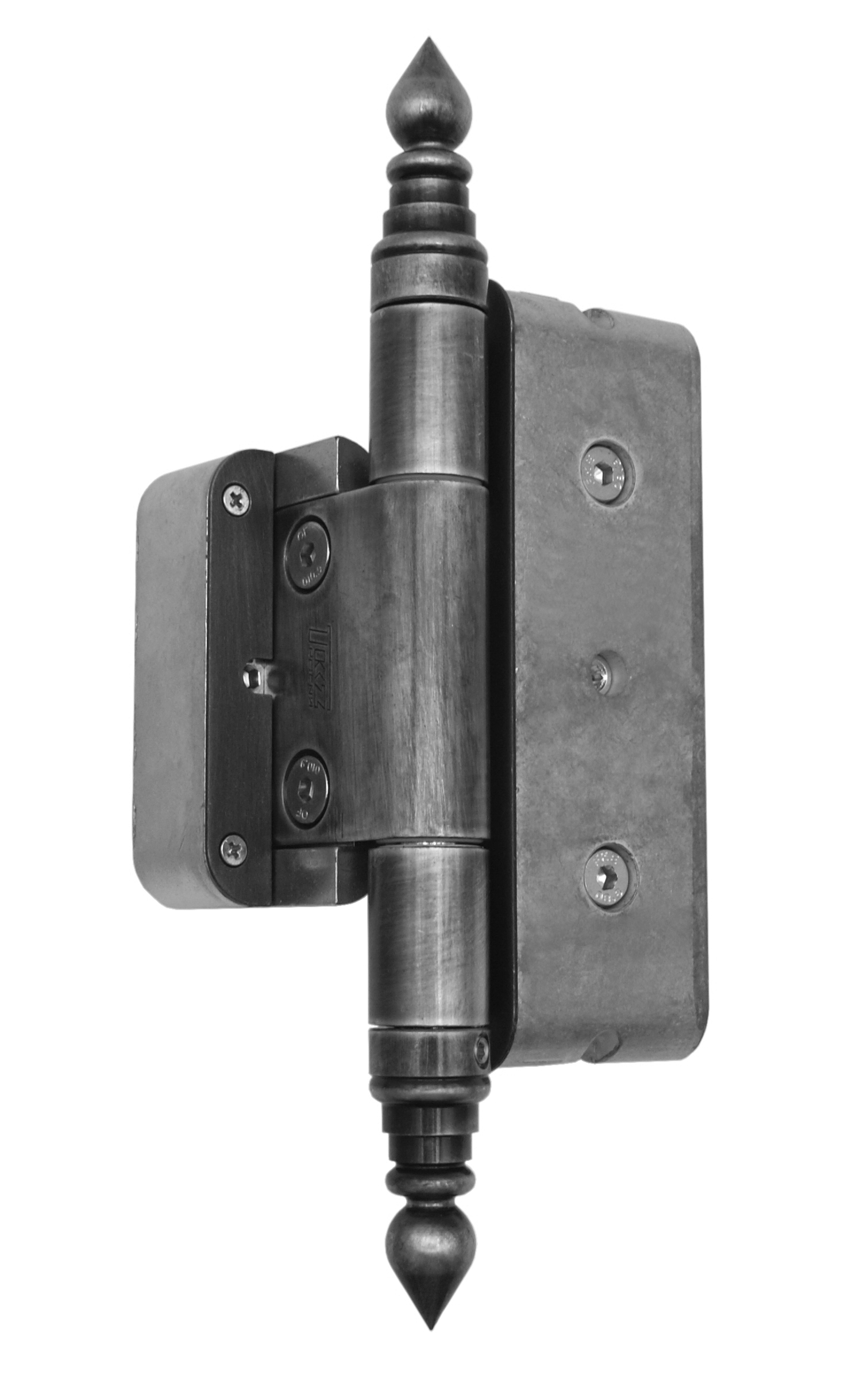

    Door hinge GEMMA 55 - 20/18 UR14 S3

    Catalog number 5574
    Load 56.00
    Type of hinge Complete hinge
    Door Exterior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Decorative ending UR14
    Main material Alloy ZAMAK and steel
    Fire resistance no
    Gripping Special
    Czech product Yes

    99G1

    Drawing

    Regulation

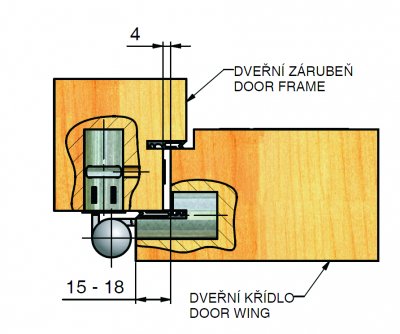

    Hinge forging

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    detail
    		Code: 55746J40 name: Black lacquer RAL 9005 (upon request) Action package size: 1 set without VAT / MJ*: € 108.09 incl. VAT / MJ*: € 130.79
    detail
    		Code: 99G43101 name: Old brass wiped (upon request) Action package size: 1 set without VAT / MJ*: € 105.86 incl. VAT / MJ*: € 128.09

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Elegant solution for your exterior doors with rabbet 15 - 18 mm, especially for profile EURO 68 (It is determined for door profile - montage with door template). The hinge is adjustable in three directions, high durability (it was tested for 1 million cycles). Plug is secured against slipping by security screw. Set contains 3 hinges (2x "H", 1x "V"). In case of doors higher than 2000 mm or wider than 1000 mm we recommend adding 4th hinge (V) which is available separately.

    The hinges are being produced upon request, surface finish is then discussed individually.
