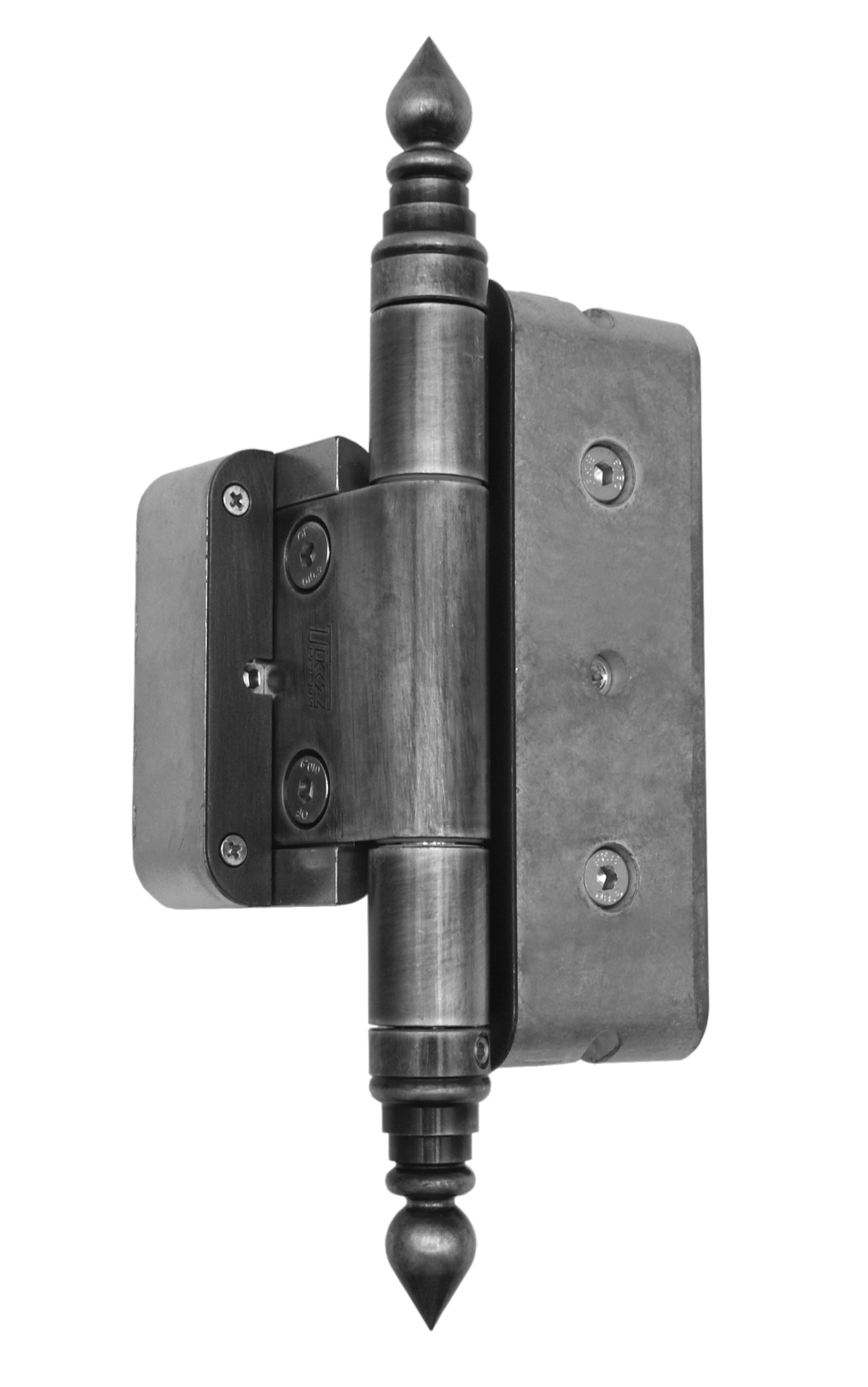

Door hinge GEMMA 55 - 20/18 cranked UR14 S3

Action
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3
Door hinge GEMMA 55 - 20/18 cranked UR14 S3

cat. no.: 5586

Load: 56.00
Type of hinge: Complete hinge
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Decorative ending UR14
Main material: Alloy ZAMAK and steel
Fire resistance: no
Gripping: Special
Czech product: Yes

Use

Hinge with decorative ending UR14, we make the hinge on order after agreement. It is determined for exterior doors with rabbet 15 - 18 mm, especially for profile EURO 68 (It is determined for window profile - montage with window template). The hinge is adjustable in three directions, high durability (it was tested for 1 million cycles). Plug is secured against slipping by security screw. Set contains 3 hinges. In case of doors higher than 2000 mm or wider than 1000 mm we recommend adding 4th hinge (V) which is available separately.

99H1

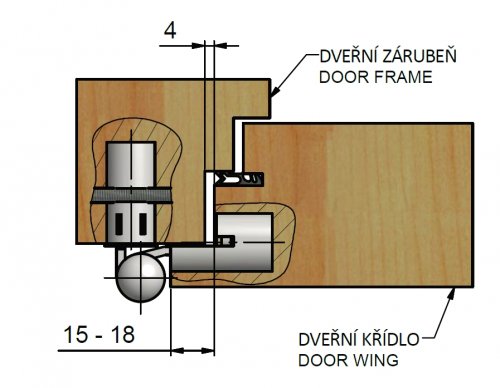

Drawing

Regulation

Hinge forging

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 55868K90 name: Old brass swept (upon request) Action package size: 1 set without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79 Action

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 55868K90 name: Old brass swept (upon request) package size: 1 sets without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
