• Catalog sheet

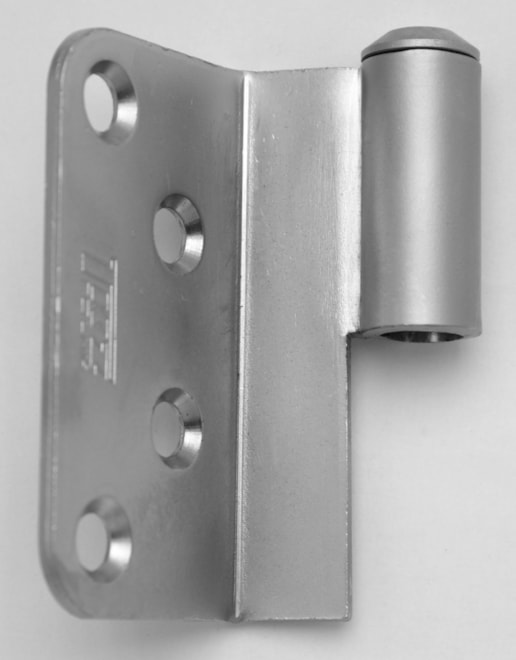

    9751

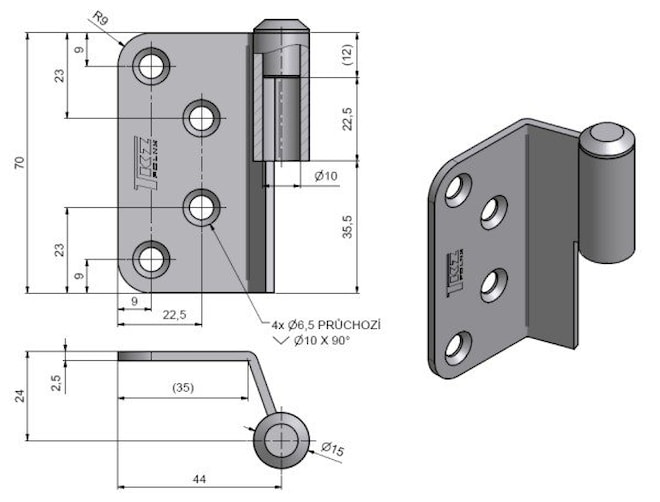

    2-00001289

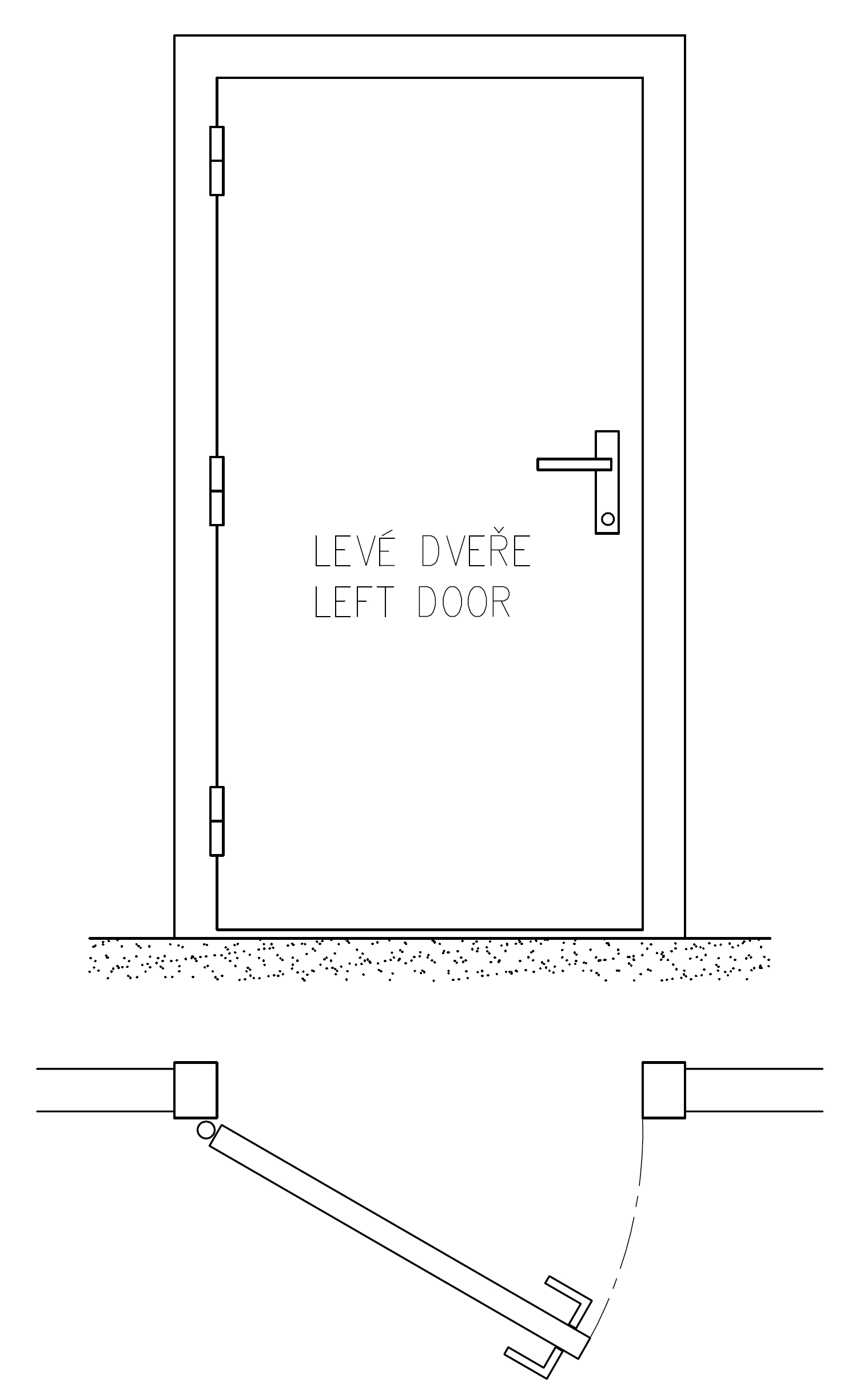

    Left door

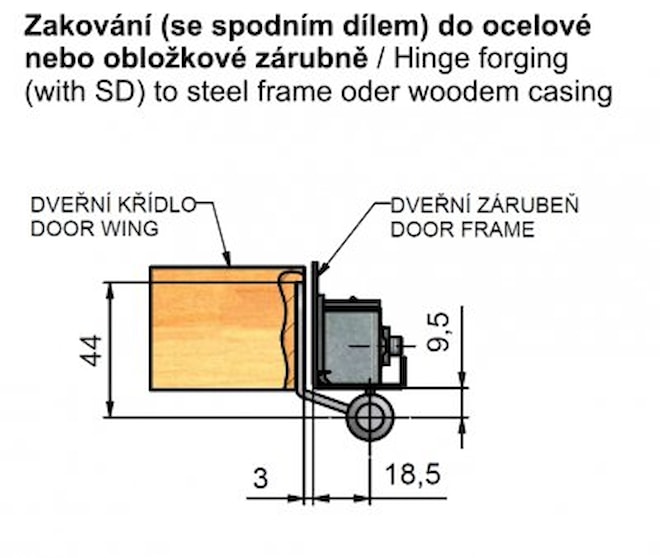

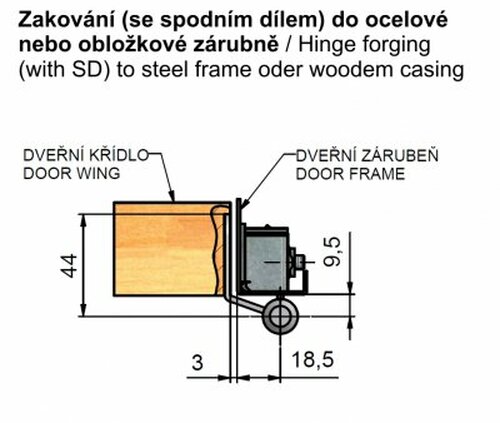

    hinge forging right

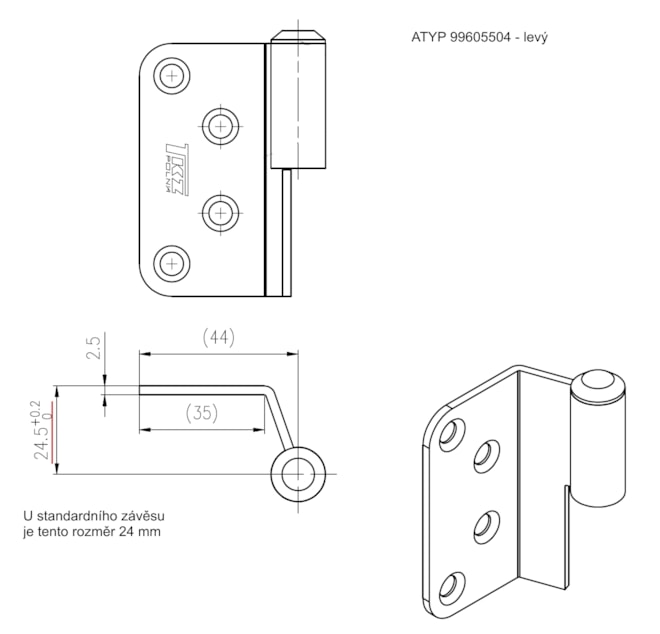

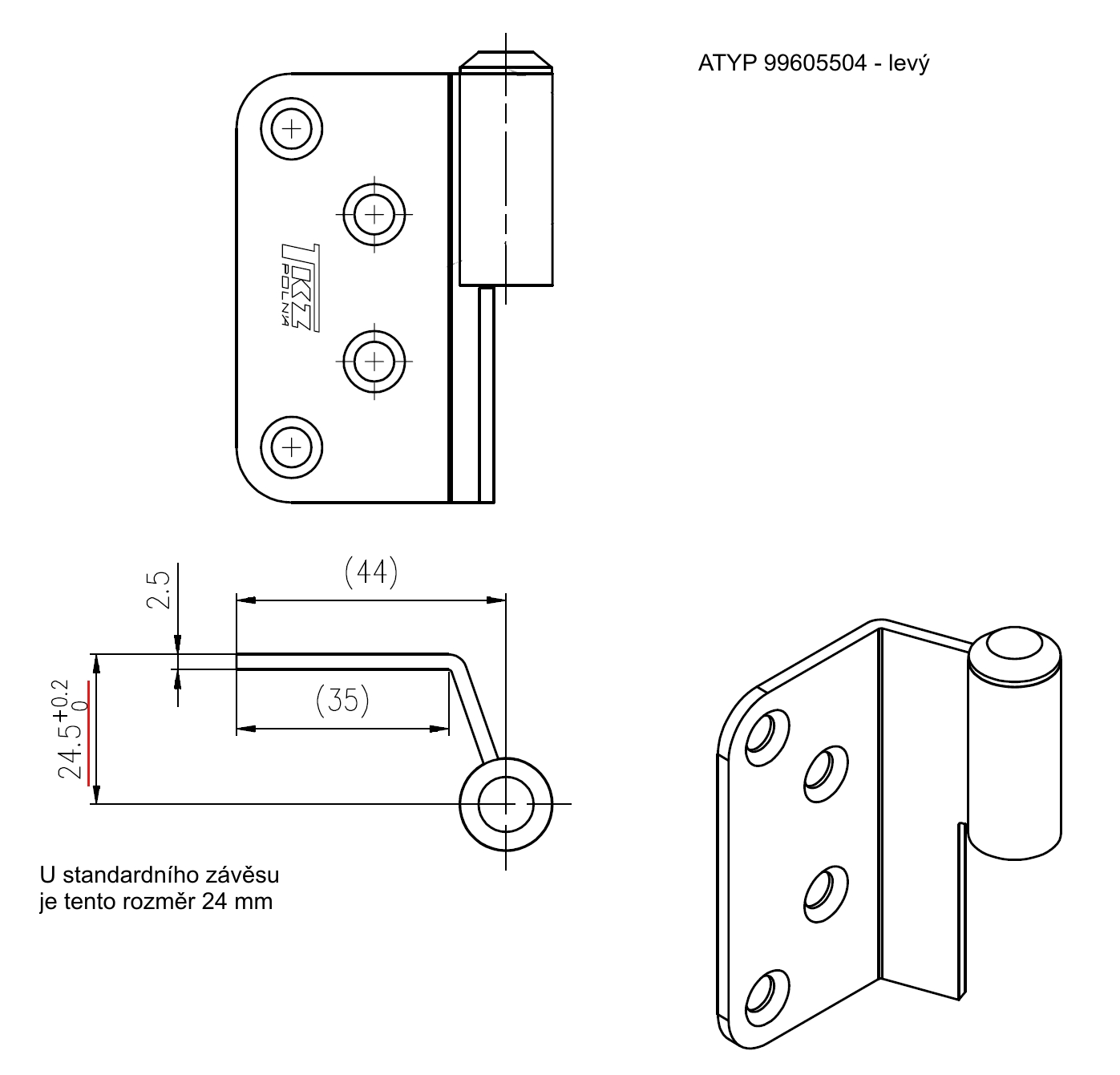

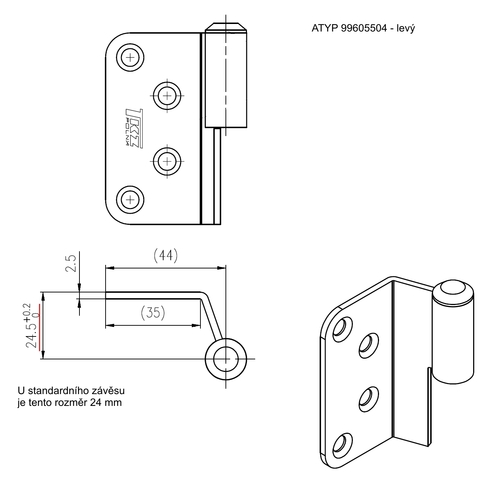

    Drawing of atypical product 9960 5504

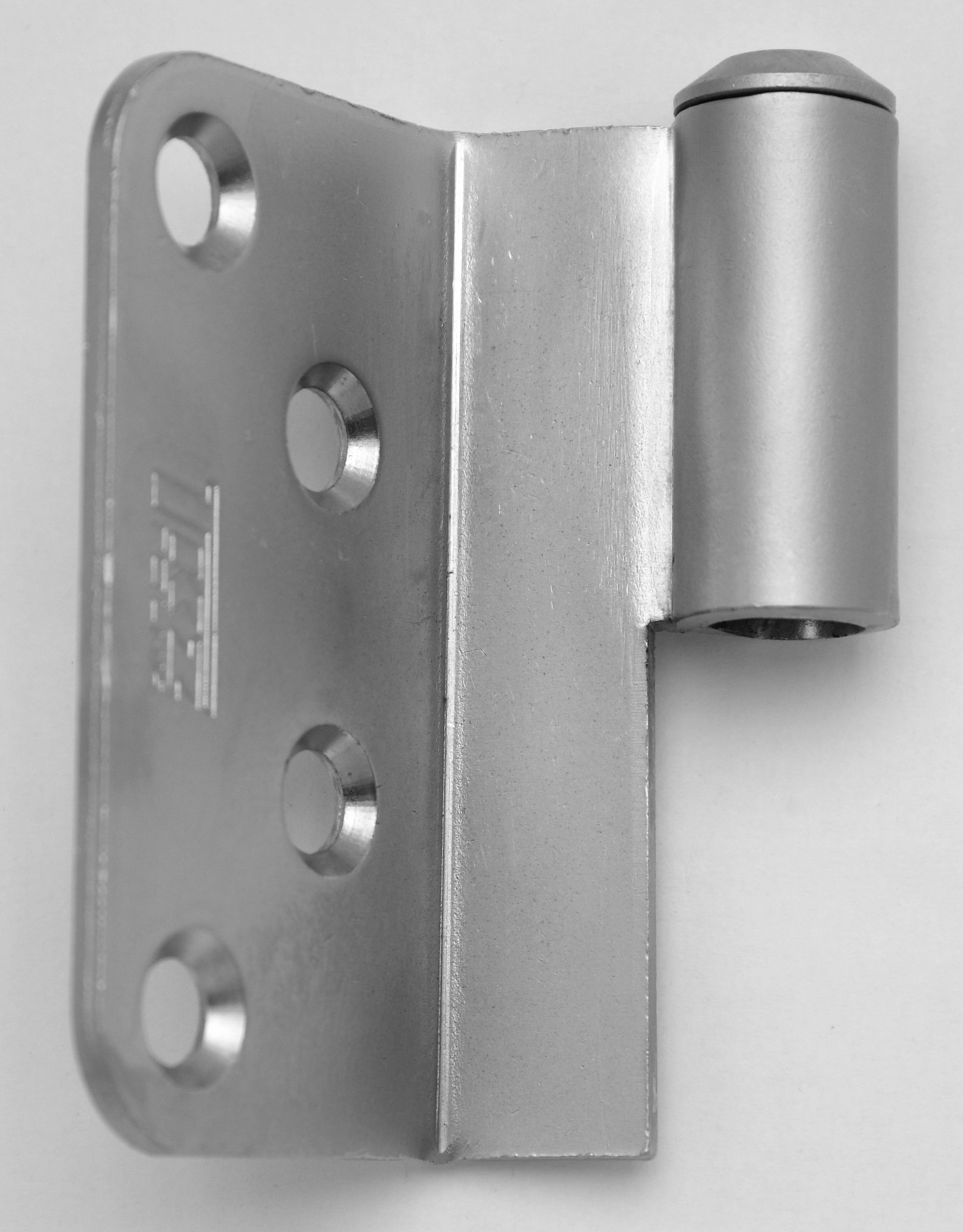

    Door hinge 80 VD L S

    Catalog number 9751
    Load 25.00
    Type of hinge Upper part
    Door Interior
    Orientation of door or window For left door (frame)
    According to material of door leaf Wood
    According to door execution Non rebated
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping upper part Screw on
    We recommend used Screws of ø 4,5 mm minimum length 40 mm
    Czech product Yes

    9751

    2-00001289

    Left door

    hinge forging right

    Drawing of atypical product 9960 5504

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 97510530 name: Blue zinc package size: 25 pcs without VAT / MJ*: 2.25 incl. VAT / MJ*: 2.72
    Code: 97513700 name: Nickel shiny package size: 25 pcs without VAT / MJ*: 2.55 incl. VAT / MJ*: 3.08
    Code: 97513D00 name: Nickel satin package size: 25 pcs without VAT / MJ*: 3.38 incl. VAT / MJ*: 4.09

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Screw upper part of hinge into non-rebated door. For turning connection with wooden frame.
