• Catalog sheet
    9687

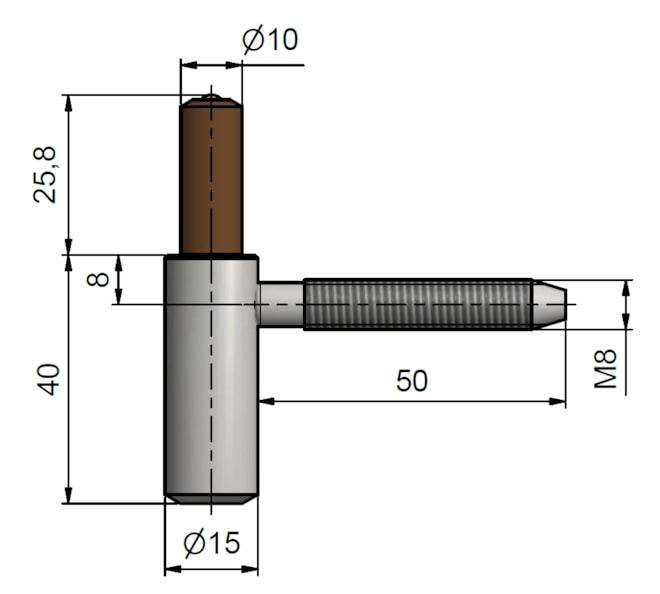

    2-9687_v

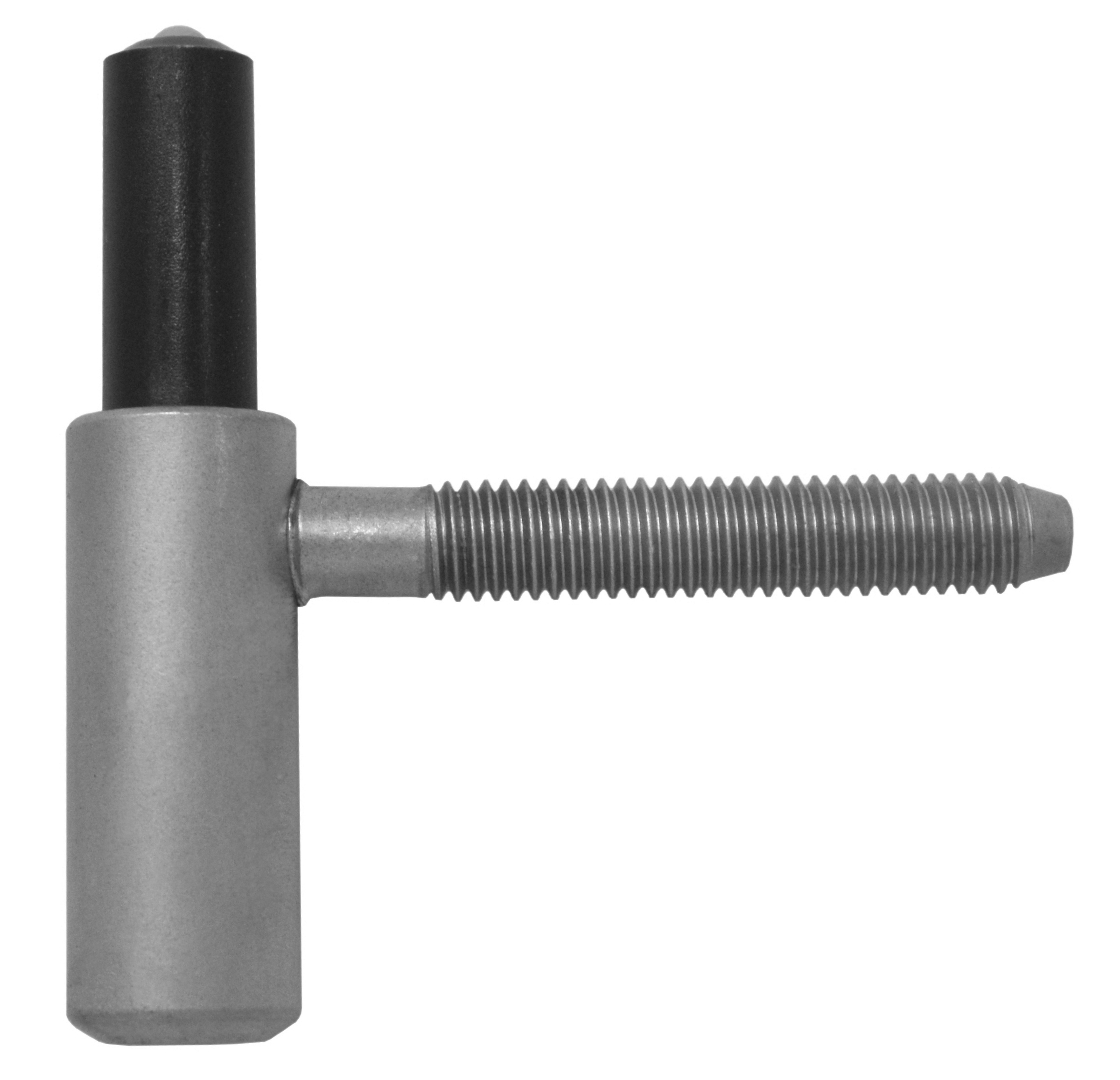

    Door hinge 80/10 SD M8x50-8 PH

    Catalog number 9687
    Load 20.00
    Type of hinge Lower part
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping lowwer part Screw in
    Diameter of bolt rivet(s) M8
    Bolt(s) lenght 50 mm
    Plug high 25,8 mm
    Czech product Yes

    9687

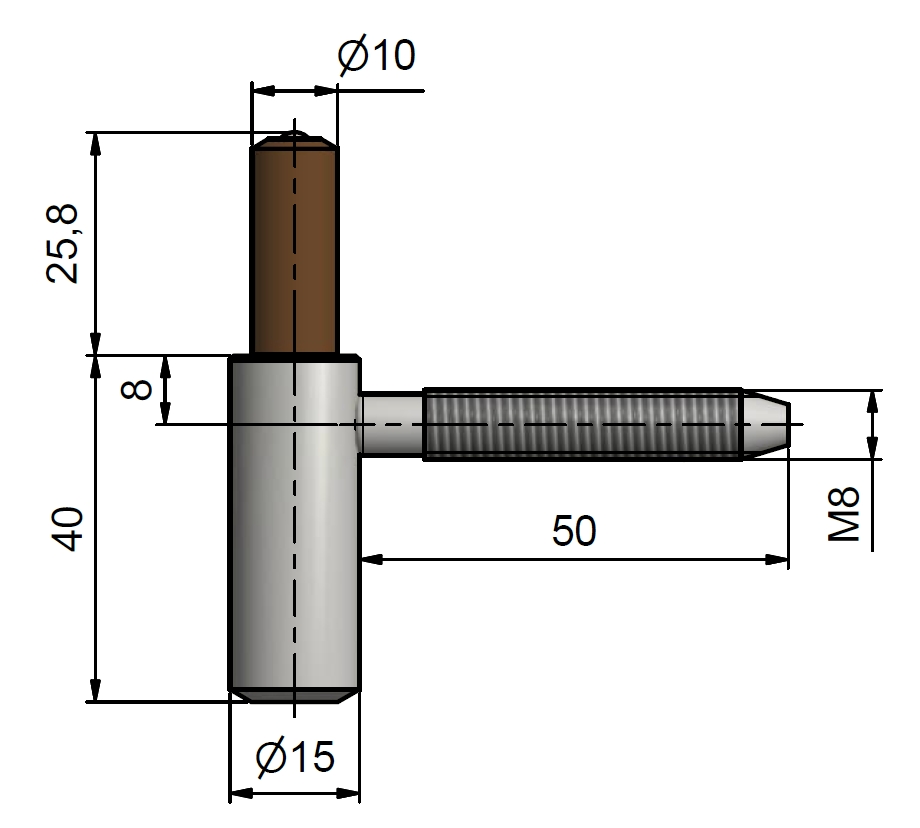

    2-9687_v

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    detail
    		Code: 96870510 name: Yellow zinc package size: 100 pcs without VAT / MJ*: € 1.37 incl. VAT / MJ*: € 1.66
    detail
    		Code: 96870530 name: Blue zinc package size: 100 pcs without VAT / MJ*: € 1.37 incl. VAT / MJ*: € 1.66
    detail
    		Code: 96878700 name: Nickel shiny package size: 50 pcs without VAT / MJ*: € 1.59 incl. VAT / MJ*: € 1.92
    detail
    		Code: 96878D00 name: Nickel satin package size: 50 pcs without VAT / MJ*: € 2.63 incl. VAT / MJ*: € 3.18

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Lower part is into wooden frame. Together with upper part for turning connection of door and frame.
