Door hinge 80/10 SD M10x1/22 PH

cat. no.: 9745

Load: 20.00
Type of hinge: Lower part
Door: Interior
Orientation of door or window: For right and left door (frame)
According to door execution: Rebate
According to doorframe: Metal, Casing of steel frame (OKZ)
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping: Into fixing element
Diameter of bolt rivet(s): M10x1
Bolt(s) lenght: 22 mm
Plug high: 25,8 mm
Czech product: Yes

Use

Lower part of hinge 80/10 for steel frame (with hinge liner M10x1) or for casing of steel frame (hinge holder OKZ).

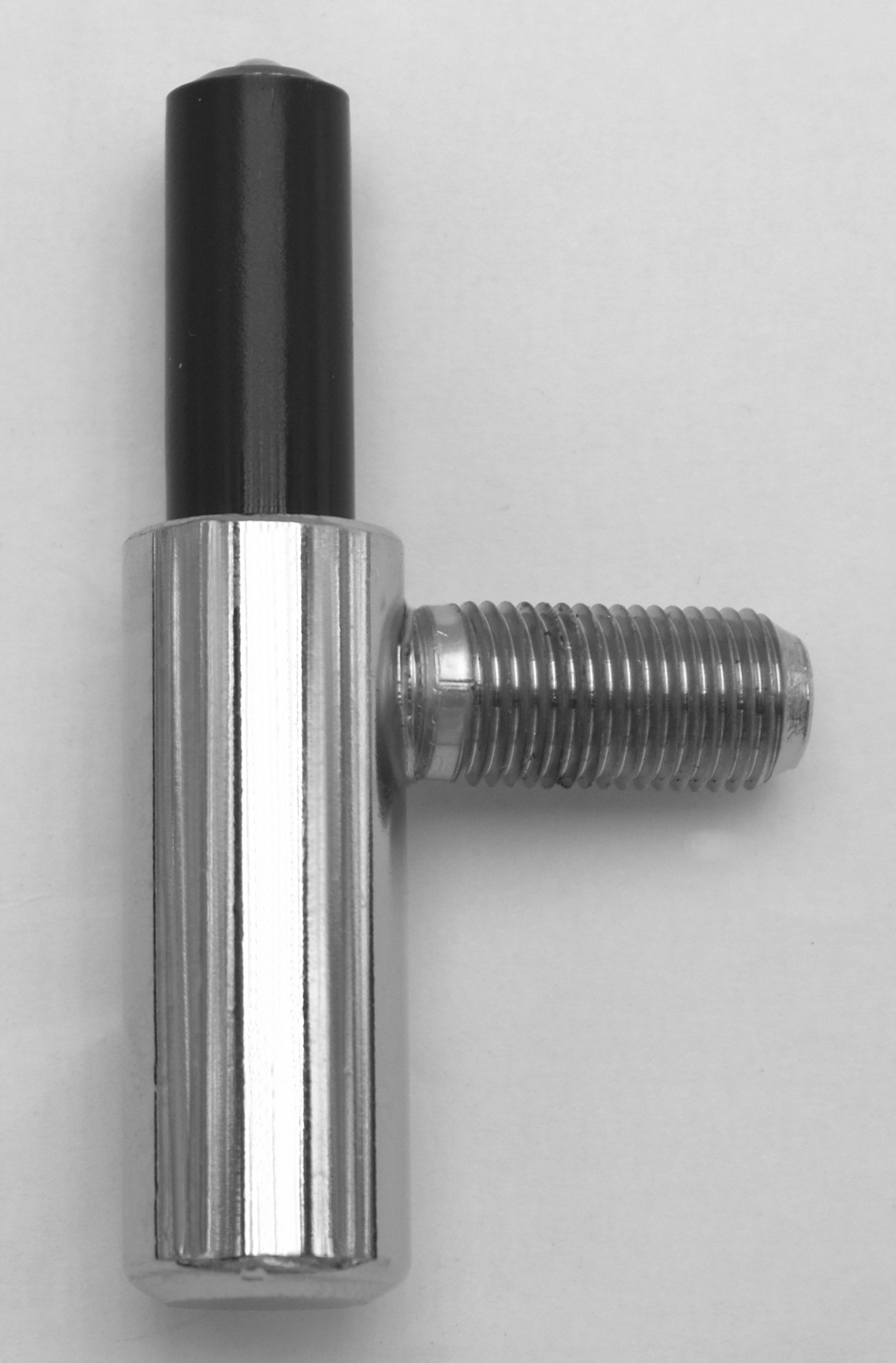

9745

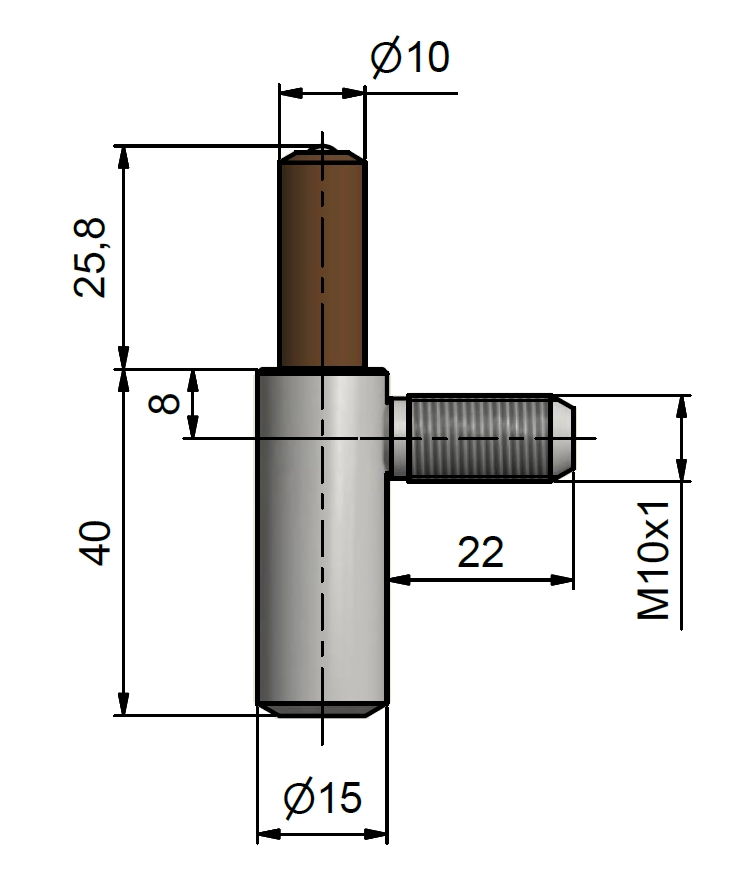

2-9745_v

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 97450510 name: Yellow zinc (upon request) package size: 100 pcs without VAT / MJ*: €1.39 incl. VAT / MJ*: €1.68
code: 97450530 name: Blue zinc package size: 100 pcs without VAT / MJ*: €1.39 incl. VAT / MJ*: €1.68
code: 97458700 name: Nickel shiny package size: 100 pcs without VAT / MJ*: €1.97 incl. VAT / MJ*: €2.38
code: 97458D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: €2.41 incl. VAT / MJ*: €2.92

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 97450510 name: Yellow zinc (upon request) package size: 100 pcs without VAT / MJ*: €1.39 incl. VAT / MJ*: €1.68
code: 97450530 name: Blue zinc package size: 100 pcs without VAT / MJ*: €1.39 incl. VAT / MJ*: €1.68
code: 97458700 name: Nickel shiny package size: 100 pcs without VAT / MJ*: €1.97 incl. VAT / MJ*: €2.38
code: 97458D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: €2.41 incl. VAT / MJ*: €2.92

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
