• Catalog sheet

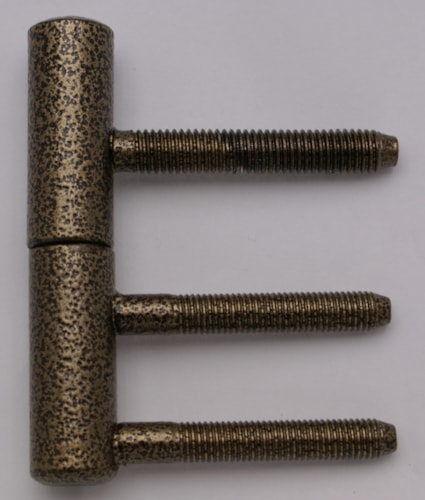

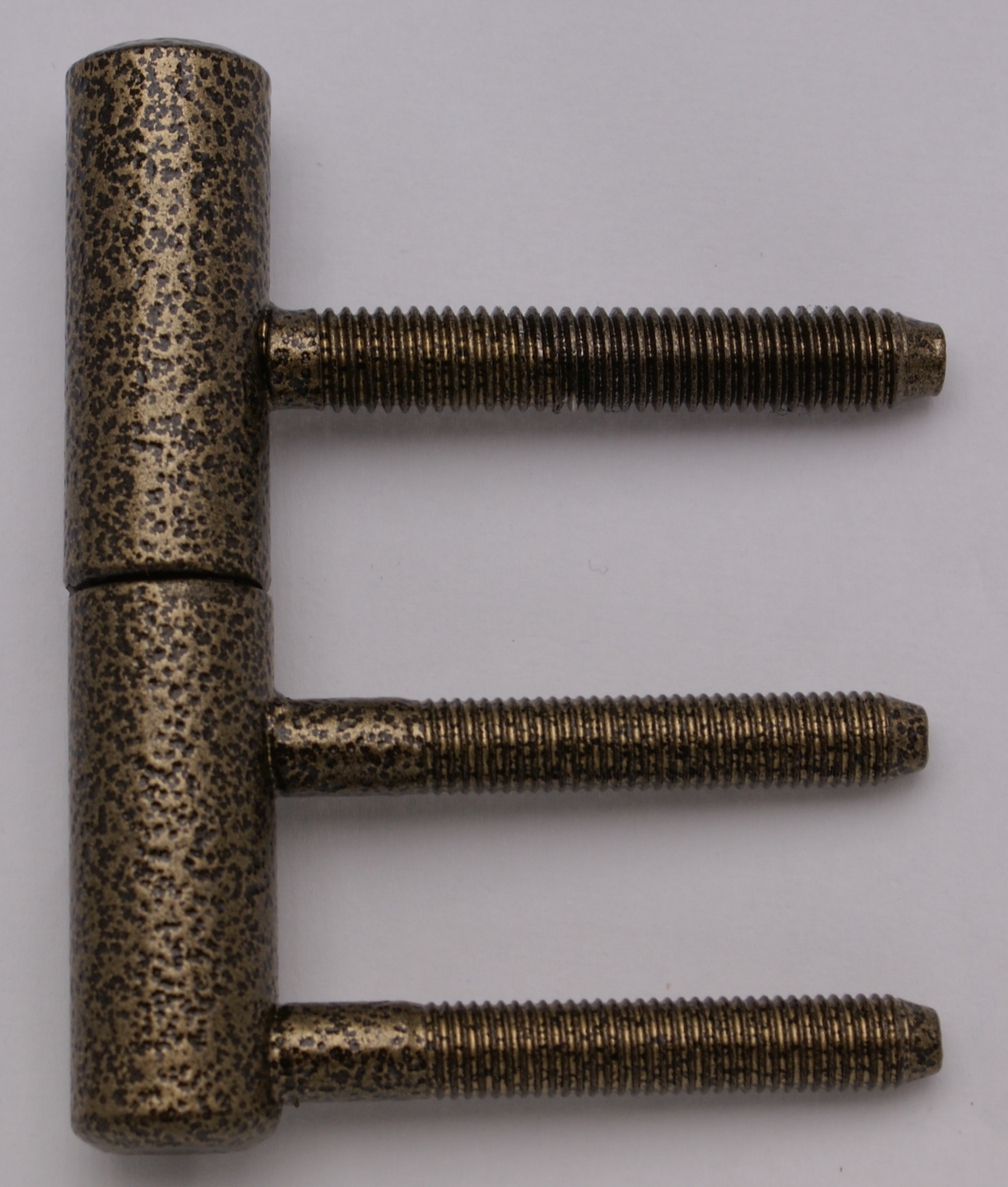

    Door hinge 80/10 M8 22/M7 Antic lacquer RAL 09/90200

    Catalog number 96923370
    Load 20.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Wooden casing
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping upper part Screw in
    Gripping lowwer part Into fixing element
    Diameter of bolt rivet(s) M7 a M8
    Plug high 25,8 mm
    Czech product Yes

    Door hinge 80/10 M8 22/M7 Antic lacquer RAL 09/90200

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    detail
    		Code: 96920510 name: Yellow zinc package size: 100 pcs without VAT / MJ*: € 1.76 incl. VAT / MJ*: € 2.13
    detail
    		Code: 96922400 name: Old copper package size: 100 pcs without VAT / MJ*: € 4.02 incl. VAT / MJ*: € 4.86
    detail
    		Code: 96922530 name: Cut + Blue zinc package size: 100 pcs without VAT / MJ*: € 2.27 incl. VAT / MJ*: € 2.75
    detail
    		Code: 96922800 name: Brass plated shiny package size: 100 pcs without VAT / MJ*: € 3.31 incl. VAT / MJ*: € 4.01
    detail
    		Code: 96922B90 name: Old brass package size: 100 pcs without VAT / MJ*: € 3.81 incl. VAT / MJ*: € 4.61
    detail
    		Code: 96923340 name: Black lacquer RAL 9005 package size: 100 pcs without VAT / MJ*: € 2.47 incl. VAT / MJ*: € 2.99
    		Code: 96923370 name: Antic lacquer RAL 09/90200 package size: 100 pcs without VAT / MJ*: € 2.47 incl. VAT / MJ*: € 2.99
    detail
    		Code: 969233C0 name: White lacquer RAL 9010 package size: 100 pcs without VAT / MJ*: € 2.47 incl. VAT / MJ*: € 2.99
    detail
    		Code: 96928700 name: Nickel shiny package size: 100 pcs without VAT / MJ*: € 2.38 incl. VAT / MJ*: € 2.88
    detail
    		Code: 96928D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: € 3.95 incl. VAT / MJ*: € 4.78

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    For turning connection of wooden door with wooden casing frame. Plastic case on pin and bearing ball ensure easy turning of hinge. Into hinge liner 22/7 DZ.
