• Catalog sheet

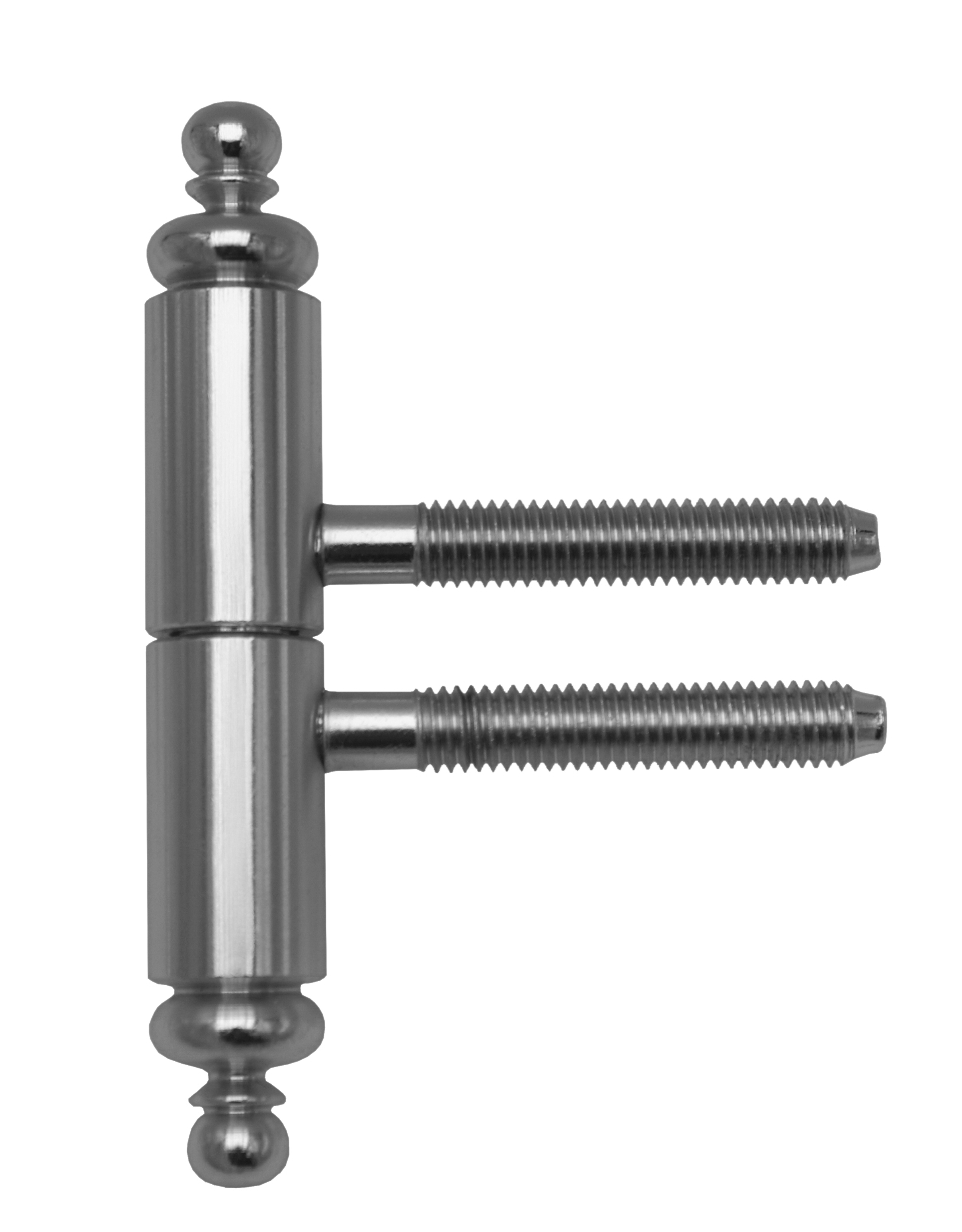

Door hinge 60 UR27/II

Catalog number 9669
Load 20.00
Type of hinge Complete hinge
Door Interior
Orientation of door or window For right and left door (frame)
According to material of door leaf Wood
According to door execution Rebate
According to doorframe Solid wood
Ending Decorative ending UR27
Fire resistance no
Gripping Screw in
Diameter of bolt rivet(s) M8
Bolt(s) lenght 50 mm
Czech product Yes

9669

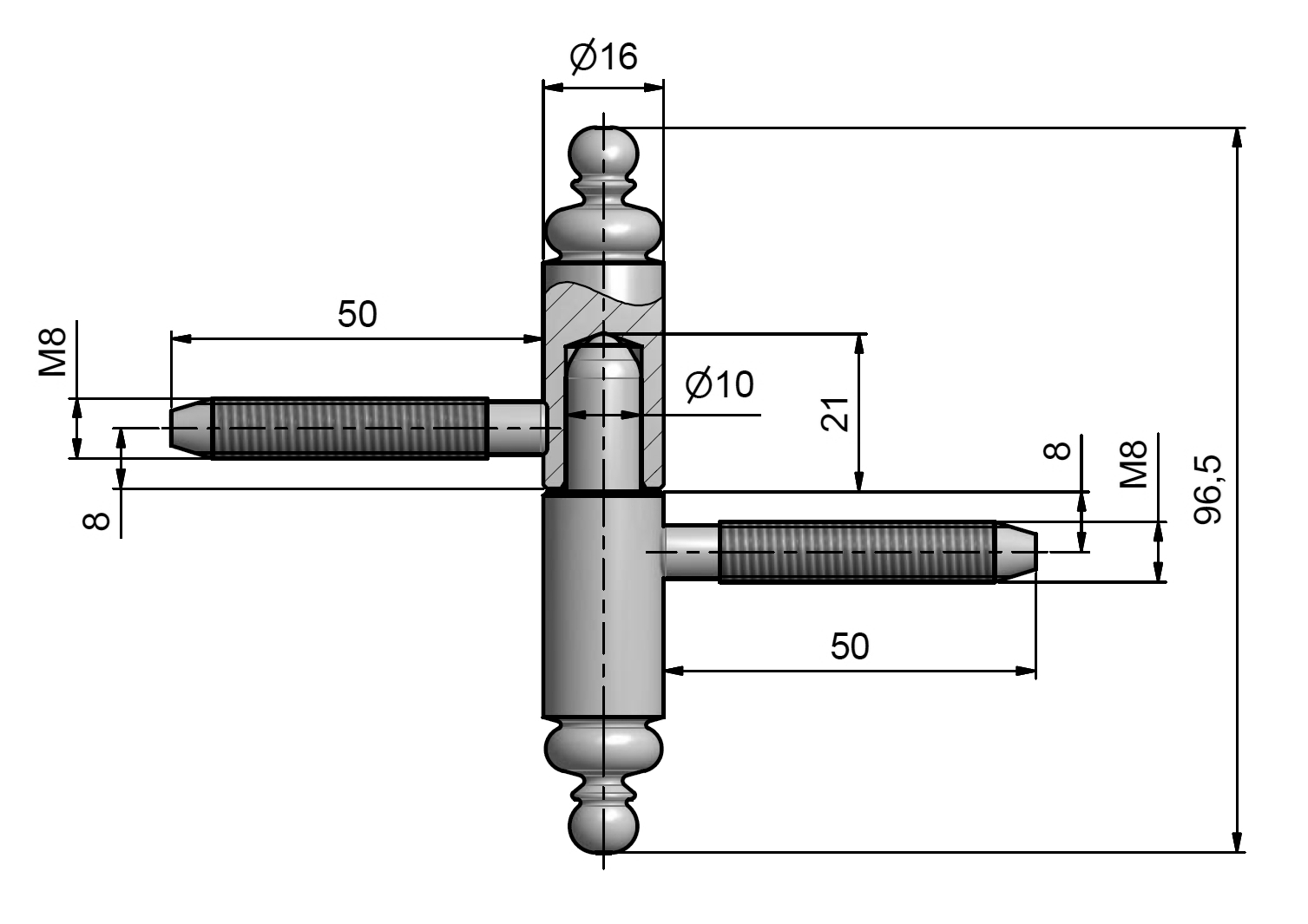

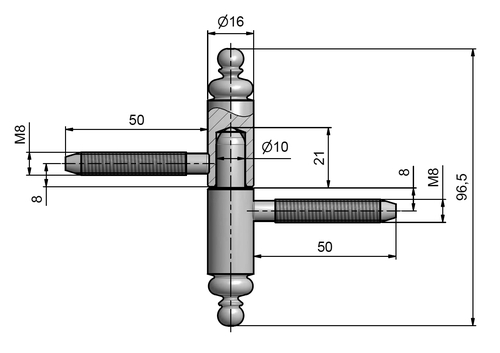

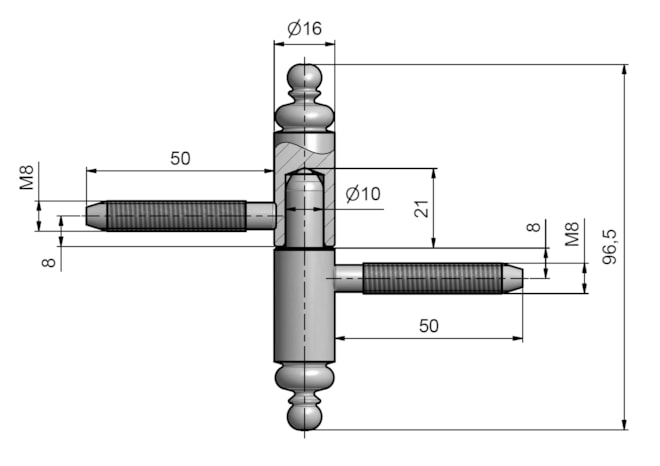

Drawing

Available variants

cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
detail
Code: 96690000 name: Without surface finish Sale package size: 40 pcs without VAT / MJ*: € 2.20 incl. VAT / MJ*: € 2.66

No item matches your selection.

*Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

For turning connection of interior wooden door with half-groove and wooden frame. Hinge with decorative ending is suitable into interior with engraved furniture.
