• Catalog sheet
    9615

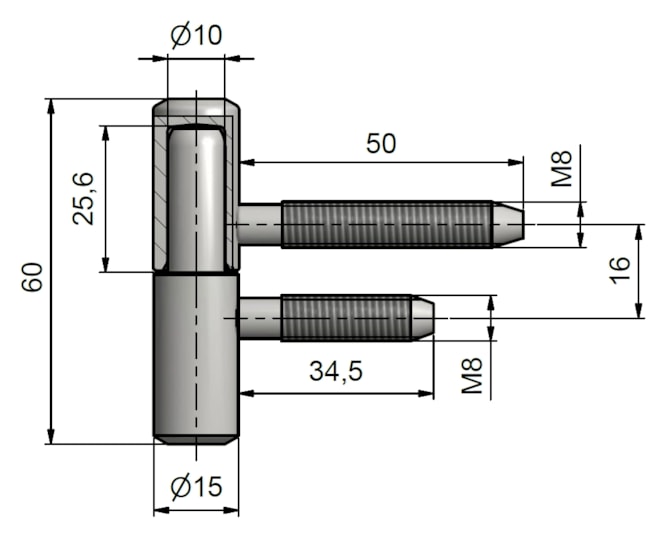

    Drawing

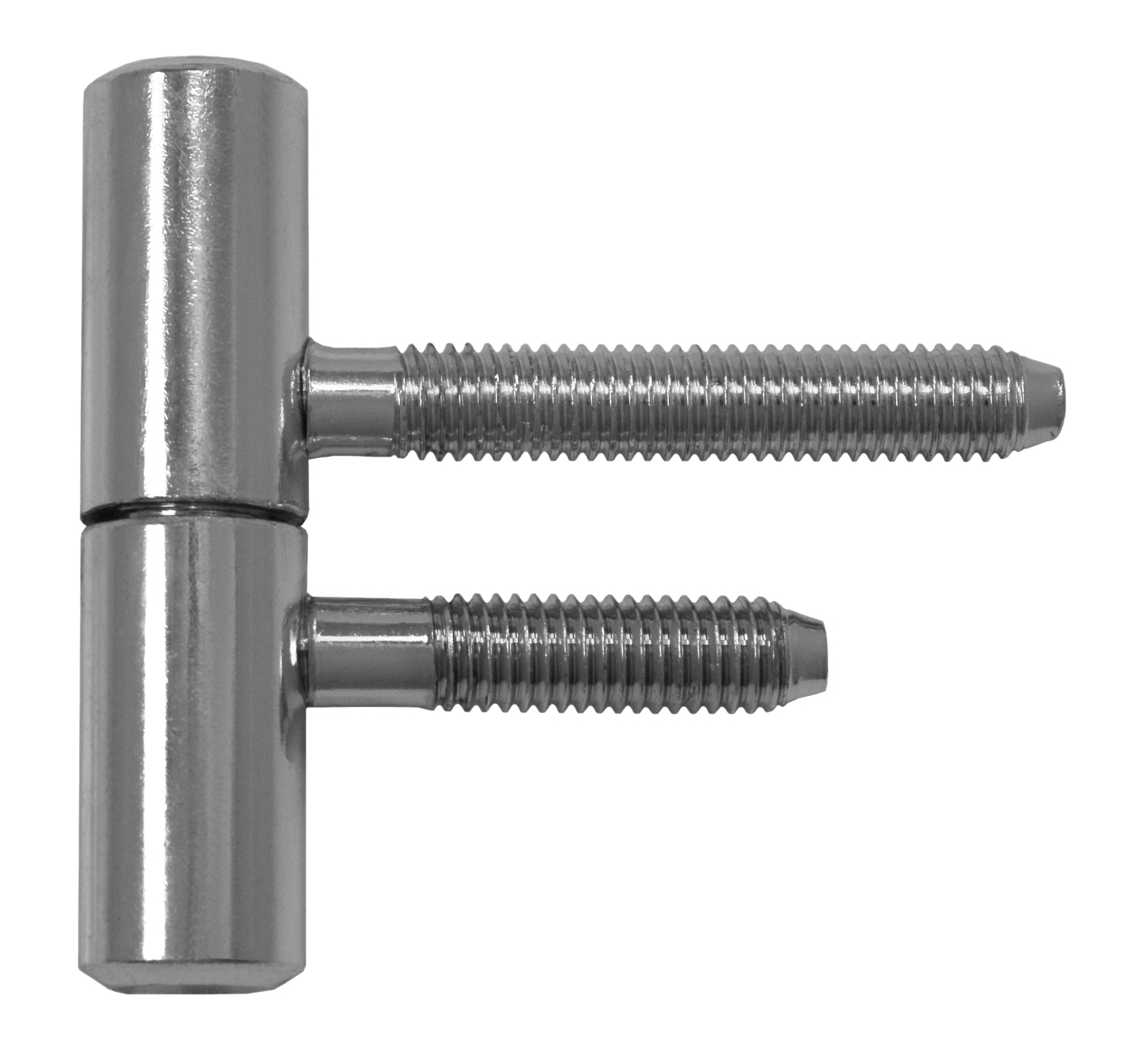

    Door hinge 60/10 M8/50 M8/34,5

    Catalog number 9615
    Load 20.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping Screw in
    Diameter of bolt rivet(s) M8
    Plug high 25,6 mm
    Czech product Yes

    9615

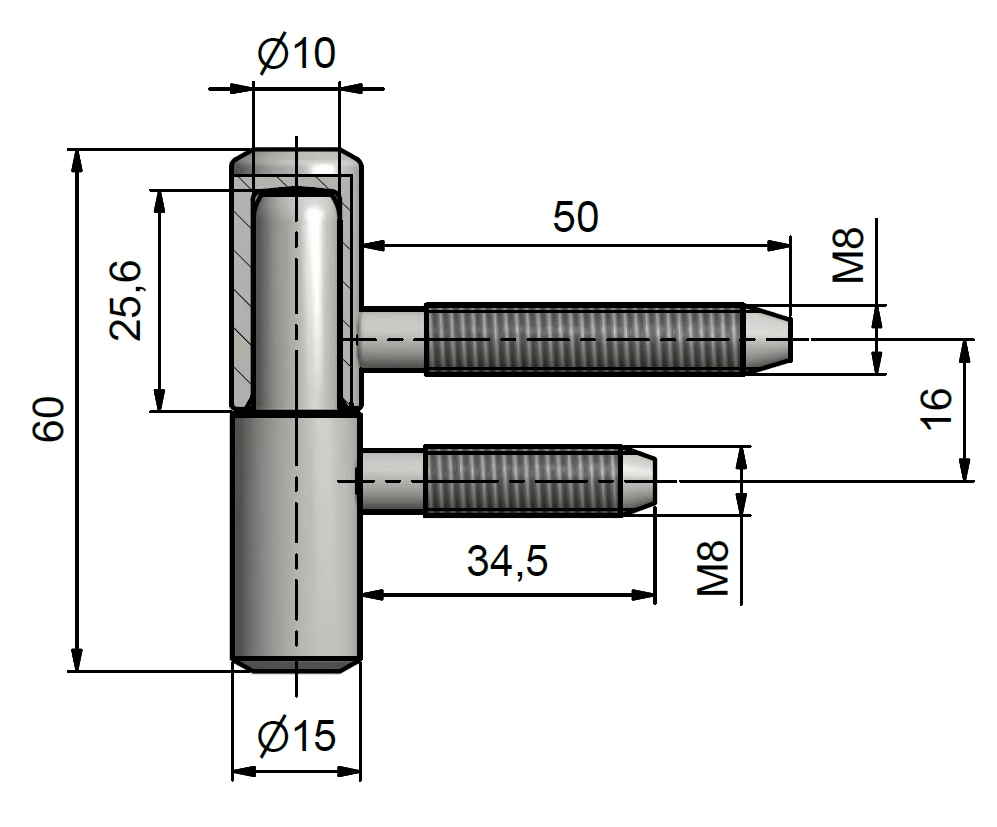

    Drawing

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 96150510 name: Yellow zinc package size: 50 pcs without VAT / MJ*: 1.21 incl. VAT / MJ*: 1.46
    Code: 96150530 name: Blue zinc package size: 50 pcs without VAT / MJ*: 1.21 incl. VAT / MJ*: 1.46
    Code: 96152490 name: Old copper package size: 50 pcs without VAT / MJ*: 2.59 incl. VAT / MJ*: 3.13
    Code: 96152800 name: Brass plated shiny package size: 50 pcs without VAT / MJ*: 2.59 incl. VAT / MJ*: 3.13
    Code: 96152B90 name: Old brass package size: 50 pcs without VAT / MJ*: 2.59 incl. VAT / MJ*: 3.13
    Code: 96158700 name: Nickel shiny package size: 50 pcs without VAT / MJ*: 2.08 incl. VAT / MJ*: 2.52
    Code: 96158D00 name: Nickel satin package size: 50 pcs without VAT / MJ*: 2.96 incl. VAT / MJ*: 3.58

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Usage: For turning connection of interior door with wooden frame.
