• Catalog sheet

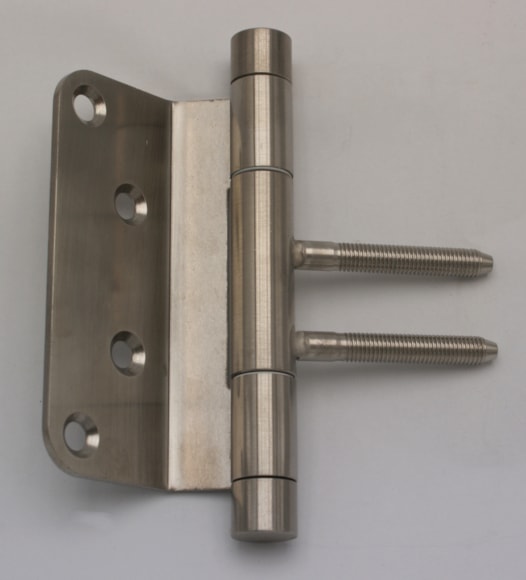

    Door hinge 15x96 22/M7 BP TUKAN stainless steel Brushed

    Catalog number 5569I000
    Load 30.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Non rebated
    According to doorframe Wooden casing
    Ending Flat ending UR24
    Main material Stainless steel
    Fire resistance no
    Gripping upper part Screw on
    Gripping middle part Into fixing element
    Gripping lowwer part Screw on
    Diameter of bolt rivet(s) M7
    Bolt(s) lenght 48 mm
    We recommend used Screws of ø 4 mm minimum length 40 mm
    Czech product Yes

    Door hinge 15x96 22/M7 BP TUKAN stainless steel Brushed

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 55696000 name: Without surface finish package size: 50 pcs without VAT / MJ*: 13.13 incl. VAT / MJ*: 15.89
    Code: 5569I000 name: Brushed package size: 50 pcs without VAT / MJ*: 15.09 incl. VAT / MJ*: 18.26

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Modern hinge for doors without rebate. Extraordinarily high corrosion resistance!

    You can regulate „the motion of the hinge“ with 0,6 mm plastic pads. The pads are not a part of the package, you can order them separately – see related products.
