• Catalog sheet

Door hinge 120 UR14 L cranked

Catalog number 9477
Load 30.00
Type of hinge Complete hinge
Door Interior, Exterior
Orientation of door or window For left door (frame)
According to material of door leaf Wood
According to door execution Rebate
According to doorframe Solid wood
Ending Decorative ending UR14
Main material Steel
Fire resistance no
Gripping Screw on
Plug high 24,5 mm
We recommend used Screws of ø 5 mm minimum length 50 mm
Czech product Yes

9477

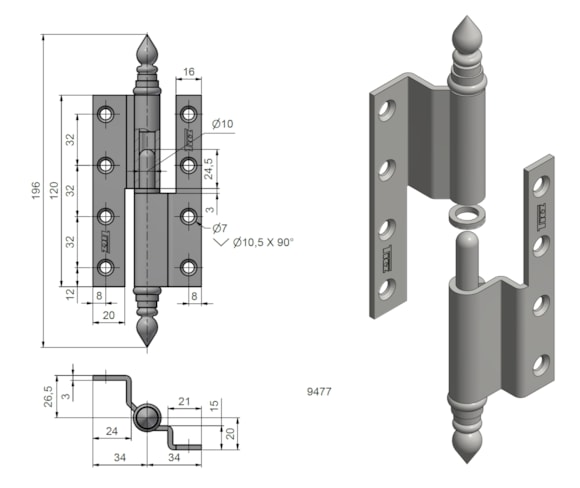

Drawing

left door

Available variants

cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
detail
Code: 94770000 name: Door hinge 120 UR14 L cranked package size: 15 pcs without VAT / MJ*: € 8.09 incl. VAT / MJ*: € 9.79
detail
Code: 94770240 name: Black lacquered RAL9005 package size: 15 pcs without VAT / MJ*: € 9.63 incl. VAT / MJ*: € 11.65
detail
Code: 94770510 name: Yellow zinc package size: 15 pcs without VAT / MJ*: € 8.97 incl. VAT / MJ*: € 10.85
detail
Code: 94770800 name: Brass plated shiny package size: 15 pcs without VAT / MJ*: € 11.59 incl. VAT / MJ*: € 14.02

No item matches your selection.

*Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

Hinge for turning connection of rebated door with wooden frame. Plug of the hinge is provided with decorative ending. Suitable for reconstruction of old doors. We recommend to screw the hinge on after making surface finish on door and frame.
