• Catalog sheet
    9270

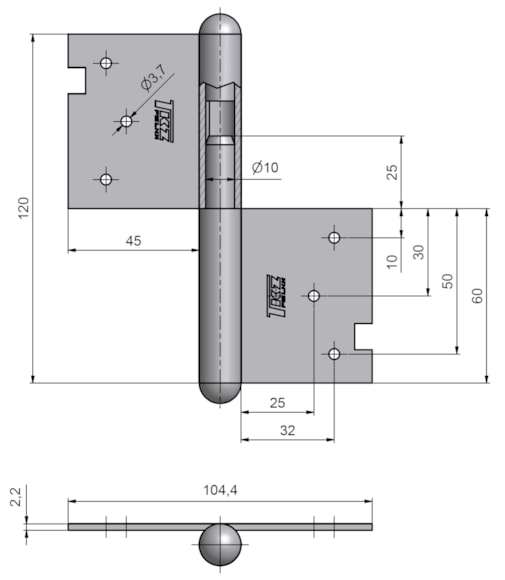

    Drawing
    right door

    Door hinge 120 R

    Catalog number 9270
    Load 25.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Semiround ending UR25
    Main material Steel
    Fire resistance no
    Gripping Mortising
    Plug high 25 mm
    Czech product Yes

    9270

    Drawing

    right door

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 92700000 name: Without surface finish package size: 10 pcs without VAT / MJ*: 1.83 incl. VAT / MJ*: 2.22
    Code: 92700510 name: Yellow zinc package size: 10 pcs without VAT / MJ*: 2.29 incl. VAT / MJ*: 2.77
    Code: 92700530 name: Blue zinc package size: 10 pcs without VAT / MJ*: 2.29 incl. VAT / MJ*: 2.77
    Code: 92700800 name: Brass plated shiny package size: 25 pcs without VAT / MJ*: 5.59 incl. VAT / MJ*: 6.76

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Hinge for turning connection of door with wooden frame. Lower and upper parts are mortised and secured by nails without head.
