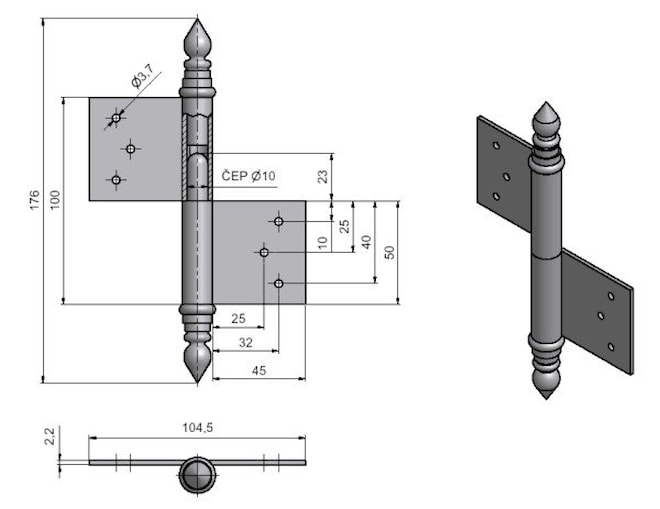

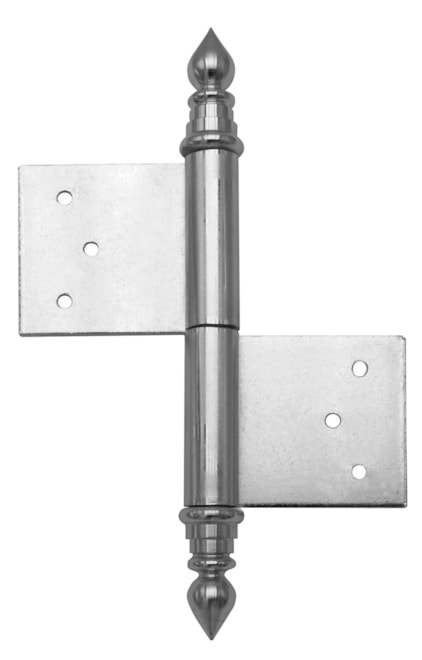

Door hinge 100 UR14 R

cat. no.: 9406

Load: 25.00
Type of hinge: Complete hinge
Door: Interior
Orientation of door or window: For right door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Decorative ending UR14
Main material: Steel
Fire resistance: no
Gripping: Mortising
Plug high: 23 mm
Czech product: Yes

Use

Hinge for turning connection of door with wooden frame. Lower and upper parts are mortised and secured by nails without head. Hinge with decorative ending. Suitable while doing reconstruction of old doors.

Door hinge 100 UR14 R

Door hinge 100 UR14 R

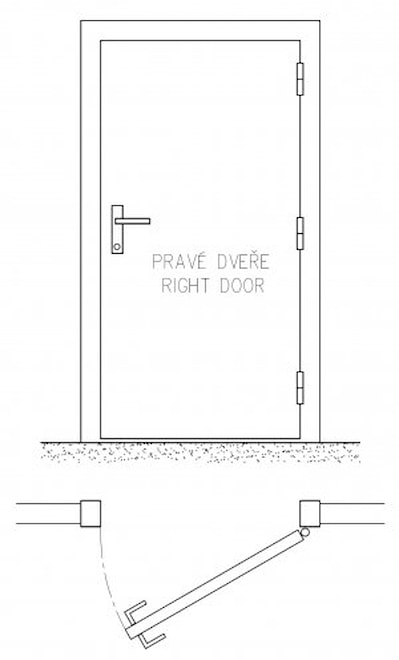

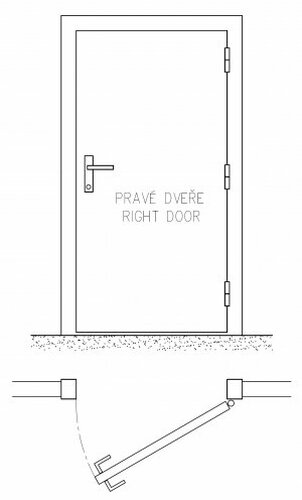

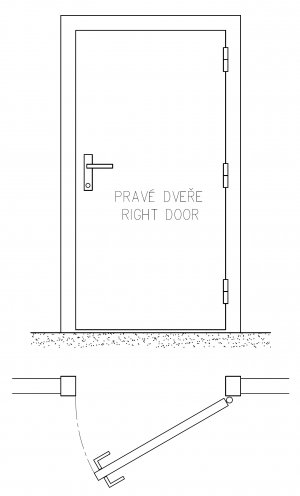

right door

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 94060000 name: Without surface finish package size: 20 pc without VAT / MJ*: €4.79 incl. VAT / MJ*: €5.80
code: 94060240 name: Black lacquered RAL9005 package size: 20 pc without VAT / MJ*: €6.10 incl. VAT / MJ*: €7.38
code: 94060510 name: Yellow zinc (upon request) package size: 20 pc without VAT / MJ*: €5.90 incl. VAT / MJ*: €7.14
code: 94060800 name: Brass plated shiny package size: 20 pc without VAT / MJ*: €8.27 incl. VAT / MJ*: €10.01

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 94060000 name: Without surface finish package size: 20 pc without VAT / MJ*: €4.79 incl. VAT / MJ*: €5.80
code: 94060240 name: Black lacquered RAL9005 package size: 20 pc without VAT / MJ*: €6.10 incl. VAT / MJ*: €7.38
code: 94060510 name: Yellow zinc (upon request) package size: 20 pc without VAT / MJ*: €5.90 incl. VAT / MJ*: €7.14
code: 94060800 name: Brass plated shiny package size: 20 pc without VAT / MJ*: €8.27 incl. VAT / MJ*: €10.01

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
