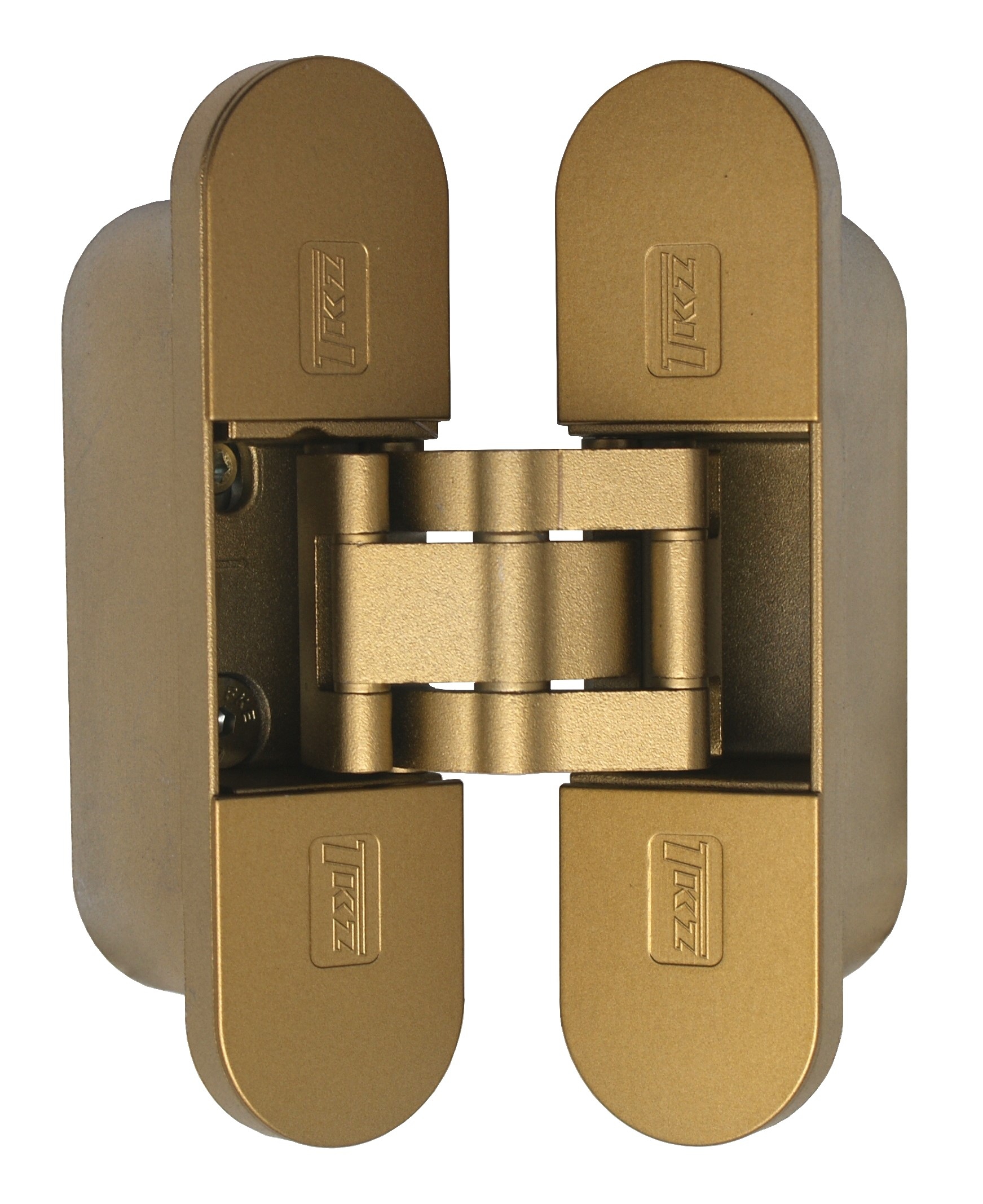

Concealed hinge TKZ ESPRIT PLUS Z S2 colours Bronze satin

cat. no.: 330402RH

Load: 30.00
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Non rebated
According to doorframe: Solid wood, Wooden casing, Metal
Main material: Alloy ZAMAK
Fire resistance: yes (appropriate for fire protection testing)
Czech product: Yes
The product includes: 2 hinges, 4 screws M5x16, 4 chipboard screws 5,0x40, 8 plates
Download:

Use

TKZ ESPRIT is ideal for modern offices, public buldings, apartments and family houses. TKZ ESPRIT is the top-quality hinge tested for 200 000 cycles with no maintenance.

The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!

 "Invisible" hinge that you cannot see in closed position, adjustable in three directions. Screws are covered by plate. Retainer for casing or steel frame (See Similar goods).

Concealed hinge TKZ ESPRIT PLUS Z S2 colours Bronze satin

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 3304024H name: colours RAL9005 black package size: 1x set without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43
code: 330402QH name: colours nickel satin package size: 1x set without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43
code: 330402RH name: colours bronze satin package size: 1x set without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43
code: 330402YH name: colours RAL9016 white package size: 1x set without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 3304024H name: colours RAL9005 black package size: 1x sets without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43
code: 330402QH name: colours nickel satin package size: 1x sets without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43
code: 330402RH name: colours bronze satin package size: 1x sets without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43
code: 330402YH name: colours RAL9016 white package size: 1x sets without VAT / MJ*: €54.07 incl. VAT / MJ*: €65.43

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
