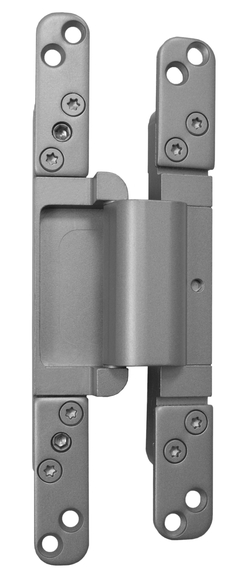

Concealed hinge FX 2 60 3-D

Concealed hinge FX 2 60 3-D
Concealed hinge FX 2 60 3-D
Concealed hinge FX 2 60 3-D
Concealed hinge FX 2 60 3-D
Concealed hinge FX 2 60 3-D
Concealed hinge FX 2 60 3-D

cat. no.: Z11.39890.

Load: 40.00
Door: Interior, Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Main material: Aluminium alloy with steel components
Fire resistance: no
Gripping: Screw on
The product includes: 1 hinge, 4 bolts M5x14, 8 chipboard screws 4,5x50

Use

The production of this hinge is finished and it cannot be ordered anymore. New model replacing the old version you can find here.

This hinge you cannot see when the doors are closed. Adjustable in three directions, for rebated door.

Z11.39890.

Drawing

Hinge forging

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: Z11.39890 name: Nickel satin (Production stopped) package size: 2 pcs without VAT / MJ*: €54.32 incl. VAT / MJ*: €65.73

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
