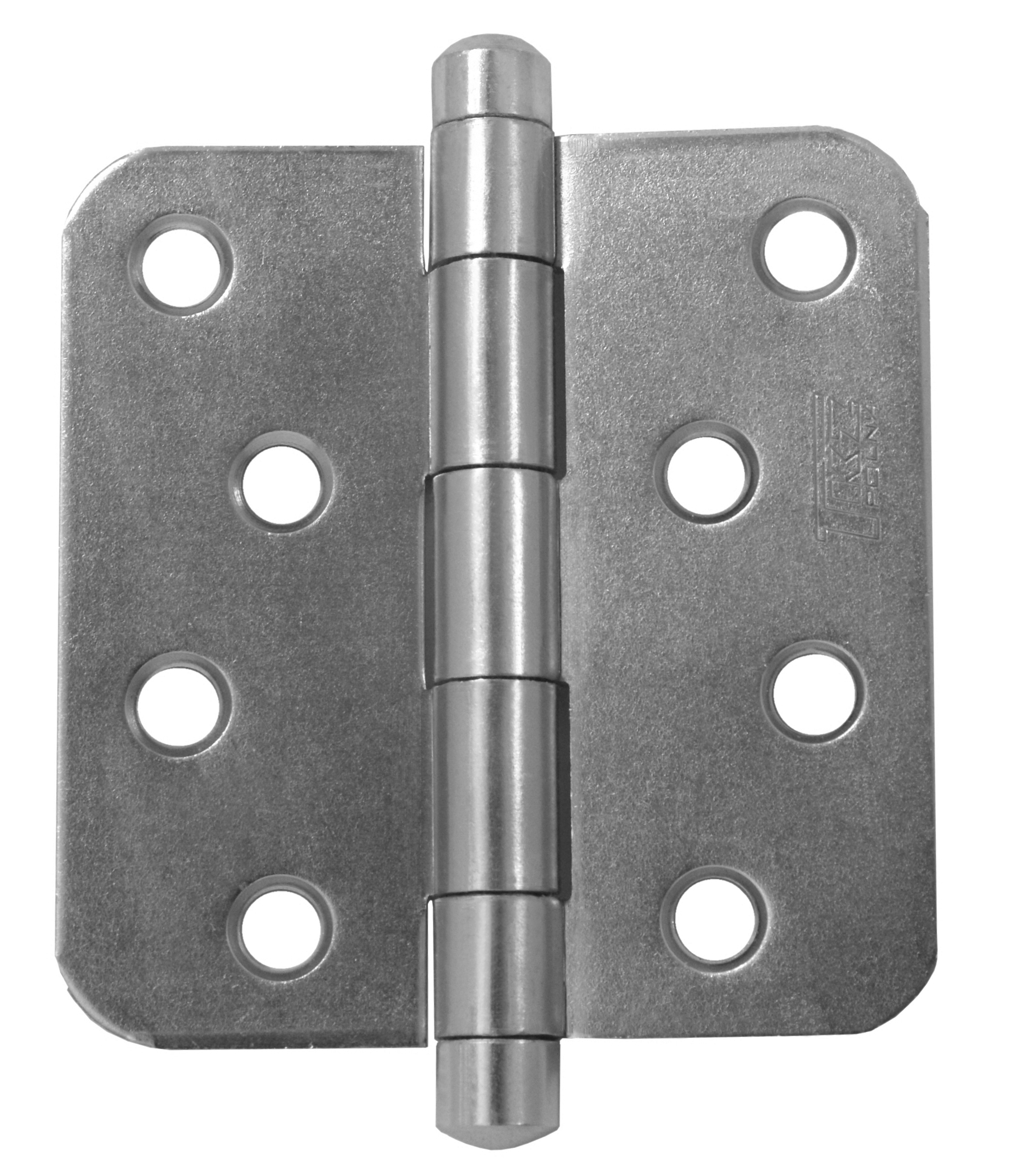

Door hinge 220
Katalognummer | 9346 |
Diameter of hinges (external) | 12 mm |
Load | 25.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to material of door leaf | Wood |
According to door execution | Non rebated |
According to doorframe | Solid wood |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping | Screw on |
We recommend used | Screws of ø 4,5 mm minimum length 40 mm |
Czech product | Yes |
Katalognummer | 9346 |
Diameter of hinges (external) | 12 mm |
Load | 25.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to material of door leaf | Wood |
According to door execution | Non rebated |
According to doorframe | Solid wood |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping | Screw on |
We recommend used | Screws of ø 4,5 mm minimum length 40 mm |
Czech product | Yes |
9346
2-00001082
Verfügbare Varianten
For turning connection of non-rebated doors with a frame. You can pull out the plug of the hinge.
